Description

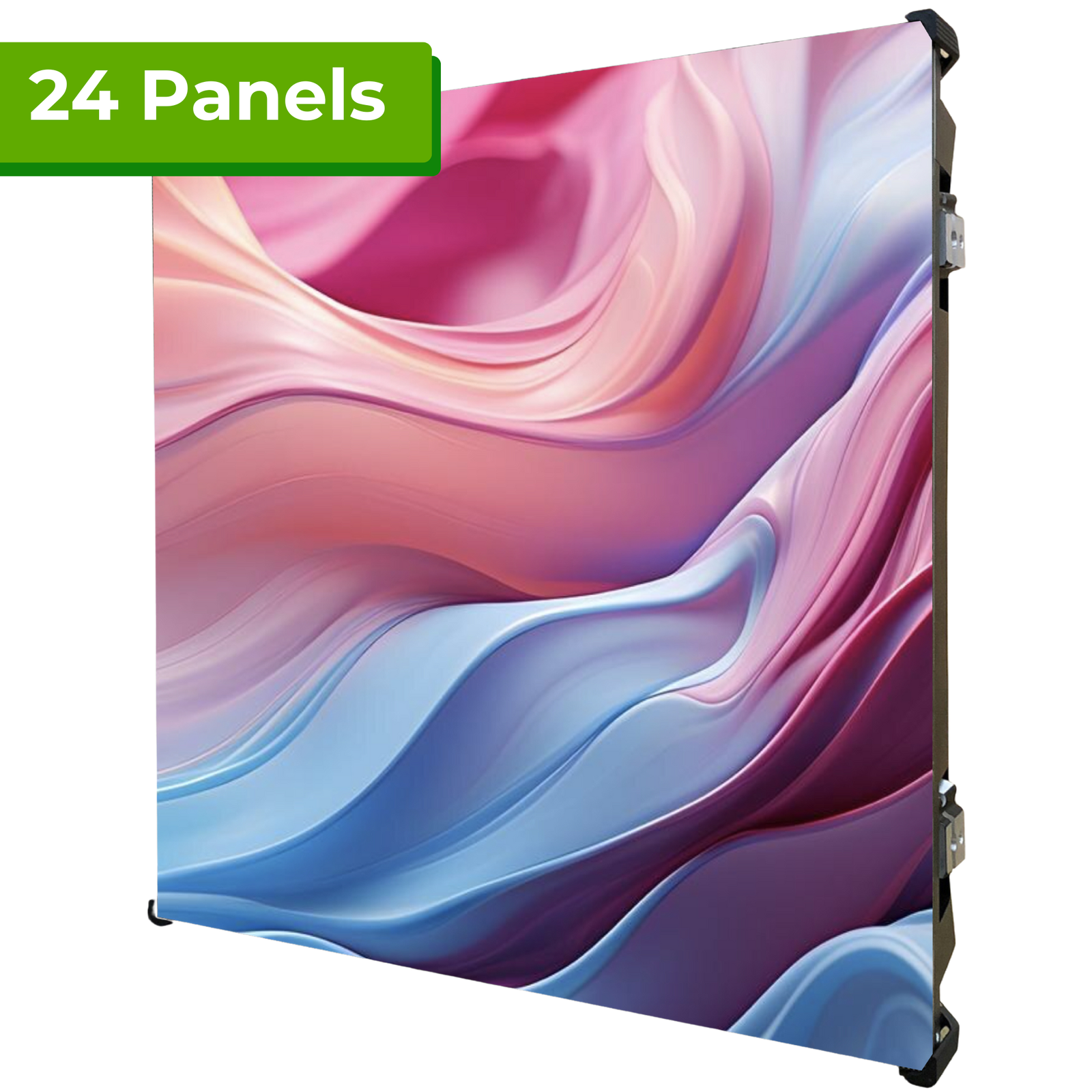

HyperLED Outdoor Rental P2.9mm
9.8′ by 6.6′ LED Video Wall Turnkey Solution
Package Includes:
- 24x 500mm x 500mm LED Video Panels
- 24x Power Patch Cables
- 24x CAT6 Patch Cables
- 2x Main CAT6 EtherCon 25ft Cable
- 2x Main PowerCon 25ft Cables
- 12x Hanging Bars
- 1x Video Processor
- 3x Wooden Crates
- 2-year Warranty
Installation:
- Hanging or Stacking
- (For Stacking, please see the ground support information)
Specifications:
- Pixel Density: 168 x 168
- Dimensions (w x h): 250mm x 250mm/ 19.7″ x 19.7″
- Resolution of Module: 84×84
- Dimensions (w x h) (mm): 500x500x83mm
- Cabinet Material: Die-casting
- Weight of Cabinet (kgs): 8.6KG
- Average/Max Consumption: 250/750 (watt/m2)
- Driving IC: 16389SF
- Driving Mode: 28 scan
- Minimum Viewing Distance: >3m
- Brightness Control: 256 levels
- Greyscale: 16 bits
- Refresh Rate: >7680Hz
- Driving mode: Constant current driving
- LED Type: 3-in-1 RGB SMD1415 LED
- Lifetime at 50% brightness: 100,000 hours
Optical Ratings:
- Viewing Angle: 160°
- Brightness: 4500cd/㎡
- Color Depth: 16 bits
- Blind spot rate: <1/10,000
Power Supply:
- Input power frequency: 50 or 60 Hz
- Input Voltage: 86 ~ 264 Volt
Control System:
- Refresh Rate: >7680Hz
- Control distance: Twisted pair network cable maximum transmission distance 130m, Multi-mode Optical fiber maximum 500m, Single-mode optical fiber maximum 10KM
- Signal input format: Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Environmental:
- Operation Temperature: -20 ~﹢50 °C±10%
- MTBF: ﹥10,000 hours
- Input Voltage(V): AC110V±10%
- Color Temperature: 3000-10000K
- International Protection: IP65
