  1. Pocket Sized V Mount Battery
  2. 1200 Cycles Premium 18650 Cells
  3. Smaller Than Competitor’s Nano Line
  4. 2x P-tap Outputs On Top with Different Orientation
  5. TSA Travel Friendly, Compact Form
  6. Smart Protection Circuit

$249.00

Description

TRIGYN POWER’s V Mount-

The ATOM, in the pocket-series is packed With 94Wh capacity, this compact, lightweight V MOUNT battery complies with the TSA capacity limit of 100Wh or less for unlimited carry-on batteries for air travel. It features 2x P-tap outputs on top of the battery and are oriented differently providing best wiring flexibility with pass through unregulated voltage for camera accessories. The TG-PS-94V Pocket Series Cine Battery displays remaining power via a push-button 4-LED power gauge. This V mount battery features built-in protection circuitry to prevent damage from overheating, overcharging/discharging, and excessive current.



TSA Compliant Capacity V MOUNT
TSA Compliant Capacity

Portability-

TRIGYN POWER’s tiniest form of batteries. The Pocket-Series is not only small and cute, but it is also created to run power-hungry cinema cameras such as the ARRI Alexa Mini,  RED Komodo and even the ARRI Mini LF by producing the constant 10A draw and can take peak current load at 12A which is superior than even some of the bigger batteries available in the market today.

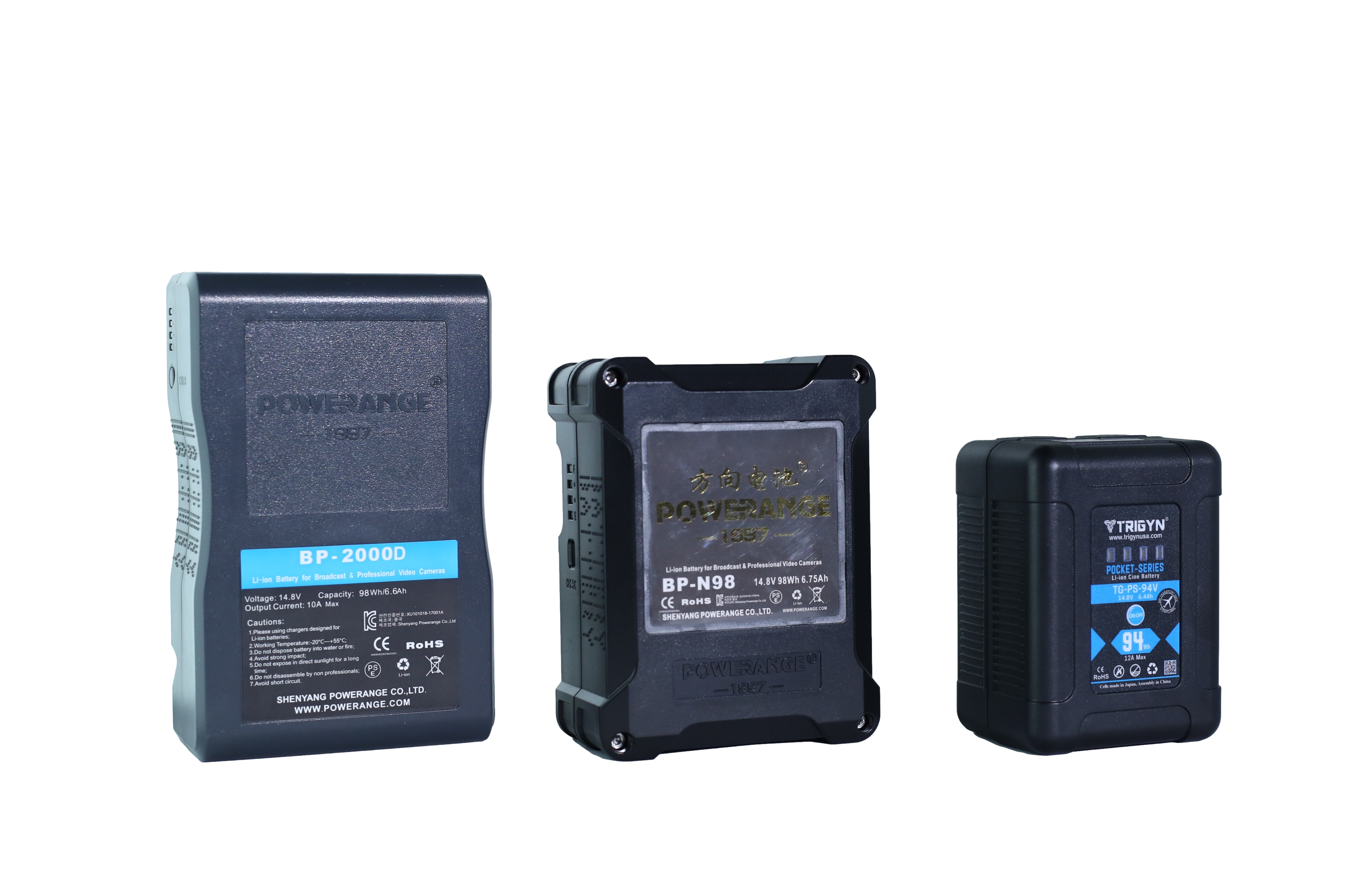

Size Comparison with Regular, Cube and Pocket Series Batteries
Size Comparison with all 94/98Wh Regular, Cube and Pocket Series Batteries

Durability-

The TRIGYN POWER line strictly uses premium 18650 Li-ion cells that are rated for lifetime 1200 cycles and guaranteed 500 cycles with 80% cell life. This makes sure your purchase is a long-term investment that fuels your growth in the filmmaking industry.

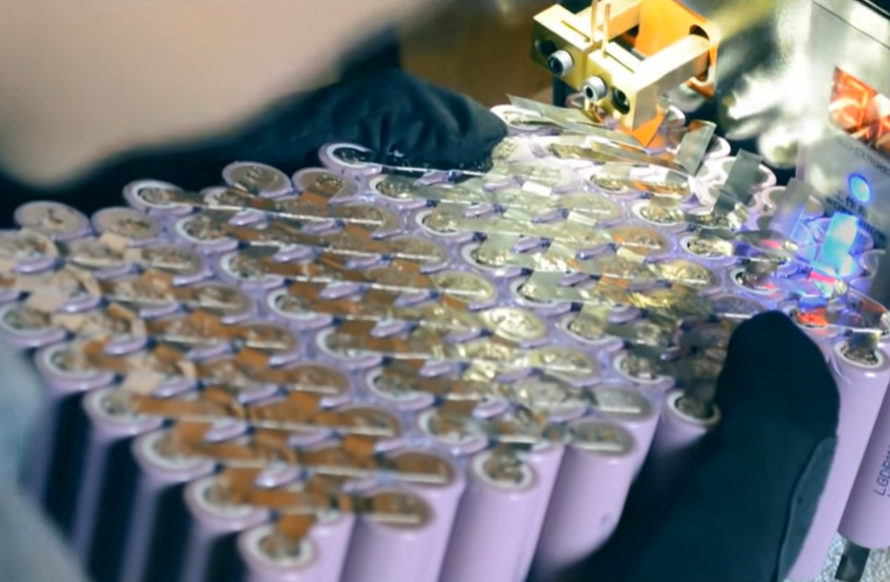

Premium 18650 Li-ion Cells
Premium 18650 Li-ion Cells

Intelligence-

Intelligent 4-step LED fuel gauge ensures the most accurate reading of your battery status is provided at the touch of a button. On top of that, our smart built-in protection circuitry actively monitors abnormality and will shut down the power when potential damage from overheating, overcharging/ discharging, and excessive current are detected.

Specification

Series
Pocket Series
Mount type
V Mount
Chemistry
Lithium-ion
Voltage
14.4 V
Capacity
94 Wh
Max current
10 Amps / 12 Amps Peak
Power tap
2 with different orientation
USB
No
Warranty
1 Year
Weight
18oz/ 500g
Height
3.8″/ 96.8mm
Width
2.82″/ 71.6mm
Depth
2.12″/ 54mm

Download

Video
