HyperLED Indoor Fixed P3.9mm 26.2′ by 9.8′ LED Video Wall Turnkey Solution

  • High-resolution indoor video wall panel
  • Luminance of 700 NITS
  • Compact 500mm x 500mm form factor
  • 3.9mm pixel pitch for ultra-HD display
  • Quick-lock mechanisms on both left and right sides of each panel
  • Refresh rate of 3840Hz driven by LED drivers
  • Novastar A5s receiving cards
  • Minimal latency for top-tier performance
  • Suitable for various fixed installations and applications:
    • Celebrations, Weddings, Concerts, Theaters, Discotheques, Nightclubs, Conference halls, Launch parties, Dance parties, and Multi-functional halls

$44,399.00

Quantity
SKU: HL-FS39262X98 Categories: , , ,
Sale!

Description

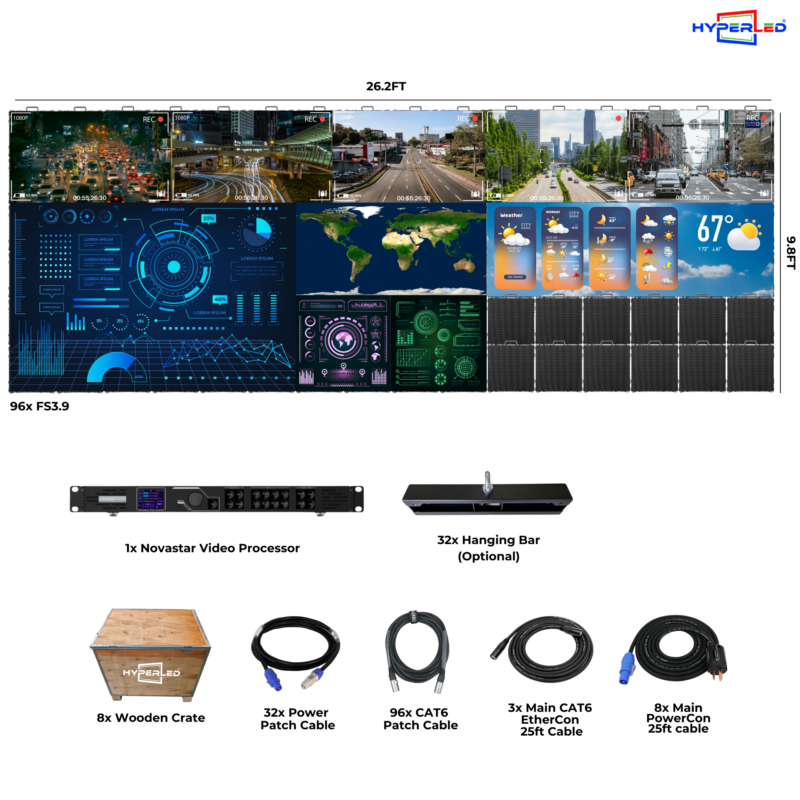

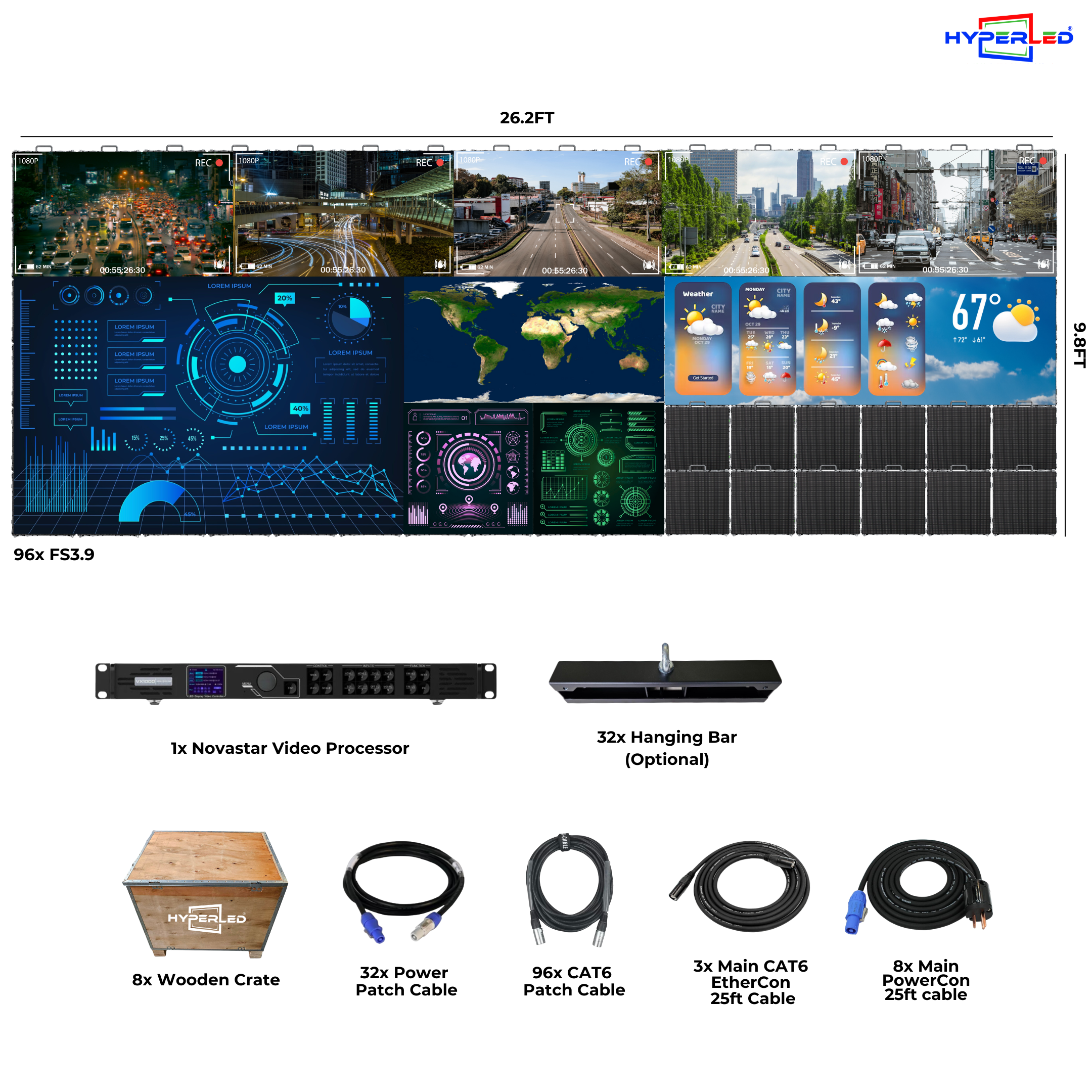

HyperLED Indoor Fixed P3.9mm 26.2′ by 9.8′

LED Video Wall Turnkey Solution



Package Includes:

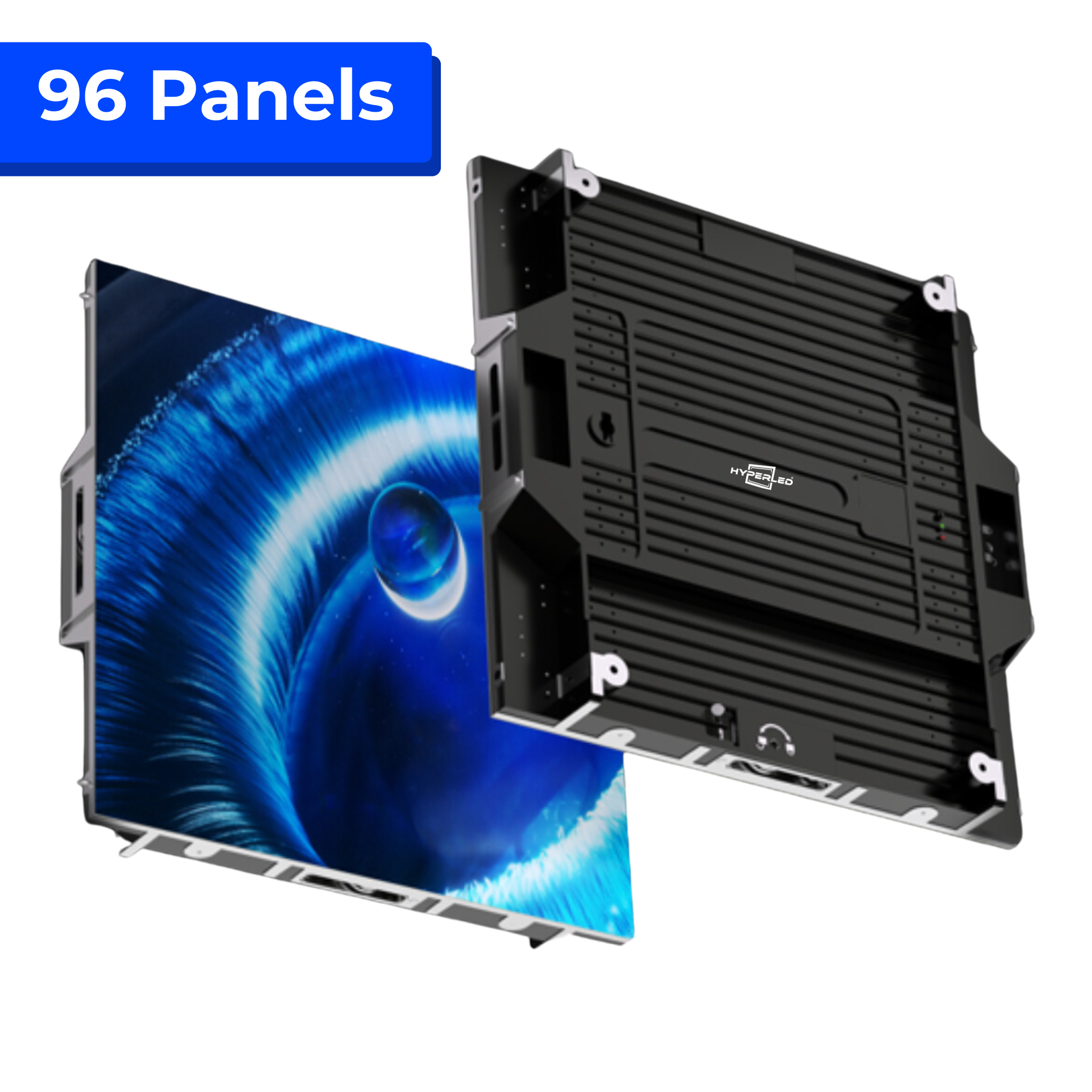

  • 96x 500mm x 500mm LED Video Panels
  • 32x Power Patch Cables
  • 96x CAT6 Patch Cables
  • 3x Main CAT6 EtherCon 25ft Cable
  • 8x Main PowerCon 25ft Cables
  • 32x Hanging Bars (Optional)
  • 1x Video Processor
  • 8x Wooden Crates
  • 2-year Warranty

Installation:

Specifications:

  • Pixel Density: 65536 pixels/sqm
  • Dimensions (w x h): 250mm x 250mm
  • Resolution of Module: 64×64
  • Dimensions (w x h) (mm): 500x500x63mm
  • Cabinet Material: Die-casting
  • Weight of Cabinet (kgs): 6.9KG
  • Average/Max Consumption: 200/600 (watt/m2)
  • Driving IC: 16389SF
  • Driving Mode: 16 scan
  • Minimum Viewing Distance: >3m
  • Brightness Control: 256 levels
  • Greyscale: 16 bits
  • Refresh Rate: >3840Hz
  • Driving mode: Constant current driving

Optical Ratings:

  • Viewing Angle: 160°
  • Brightness: 700cd/㎡
  • Color Depth: 16 bits

Power Supply:

  • Input power frequency: 50 or 60 Hz
  • Input Voltage: 86 ～ 264 Volt

Control System:

  • Refresh Rate: >3840Hz

Environmental:

  • Operation Temperature: -20 ～﹢50 °C±10%
  • MTBF: ﹥10,000 hours
  • Input Voltage(V): AC110V±10%
