  • Battery charging input
  • Gold-Mount
  • Built-in HDMI splitter
  • 15mm rod connectors
  • USB charging port for mobile devices
  • Can be mounted to the back of the rig as counterweight

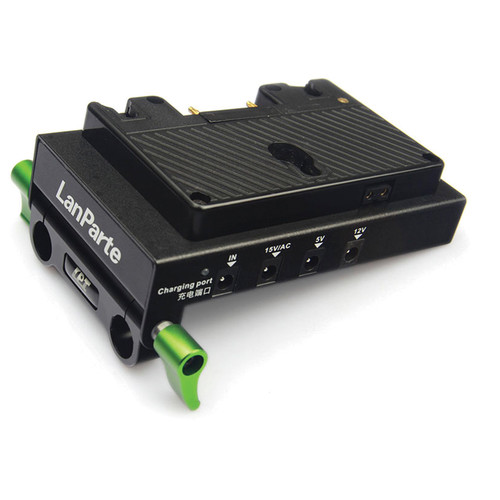

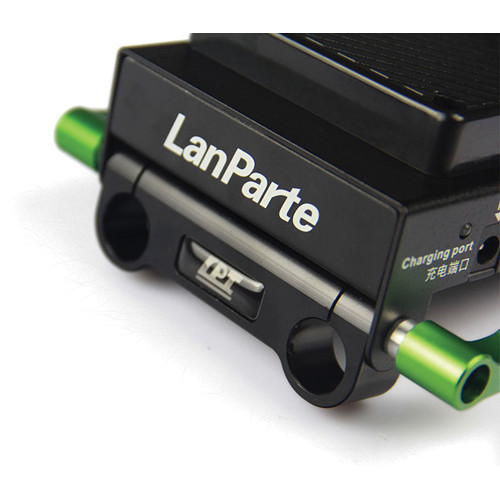

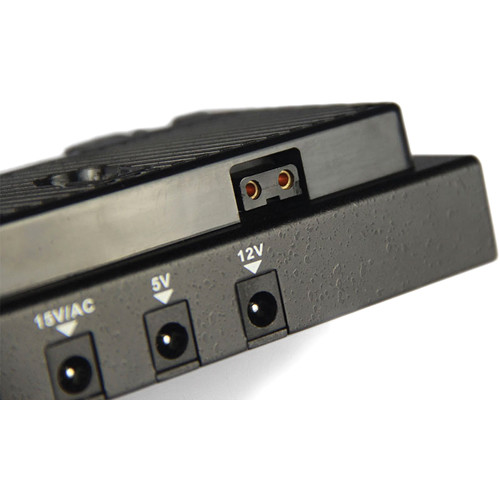

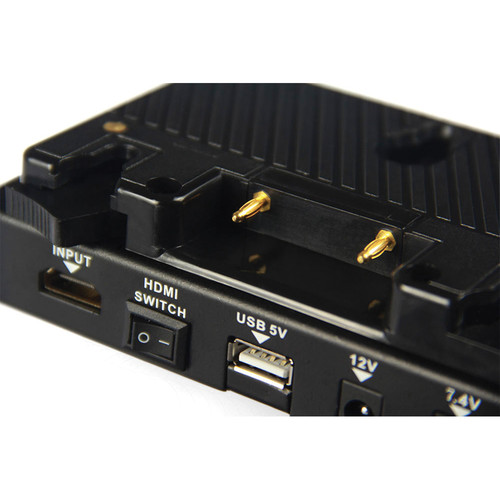

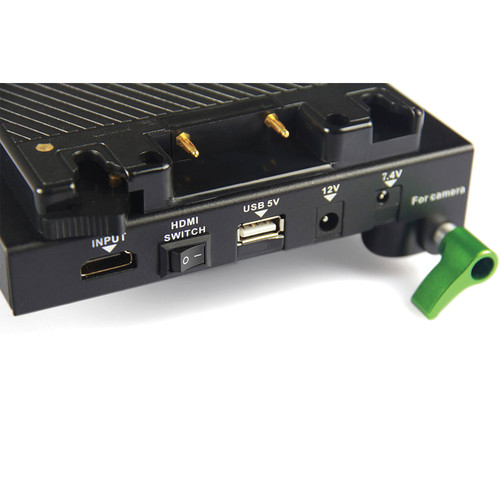

Power your camera rig with the LanParte ABP-01 Gold-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.



Output Voltage 5 to 15 VDC
Connectors 5 x DC Jack
1 x D-Tap
1 x USB Type-A
2 x HDMI
Battery Plate Type Gold Mount
Accessory Mounting 19 mm Rod Mount
Dimensions 10 x 7 x 4″ / 25.4 x 17.8 x 10.2 cm
Weight 5 lb / 2.3 kg

What's Included

󠀡󠀡1.A-Mount Battery Pinch (ABP-01)
2.AC adaptor (Adaptor-01)
3.4 pcs DC cables (DC-55-21)
4.1 pcs DC cable (DC-35-135)

Product Video
