  • For Cinema Camera & Production Camera 4K
  • 15mm Rod Baseplate with ARRI Rosettes
  • Dovetail Plate
  • Top Handle with Cold Shoe

$1,221.00

Description

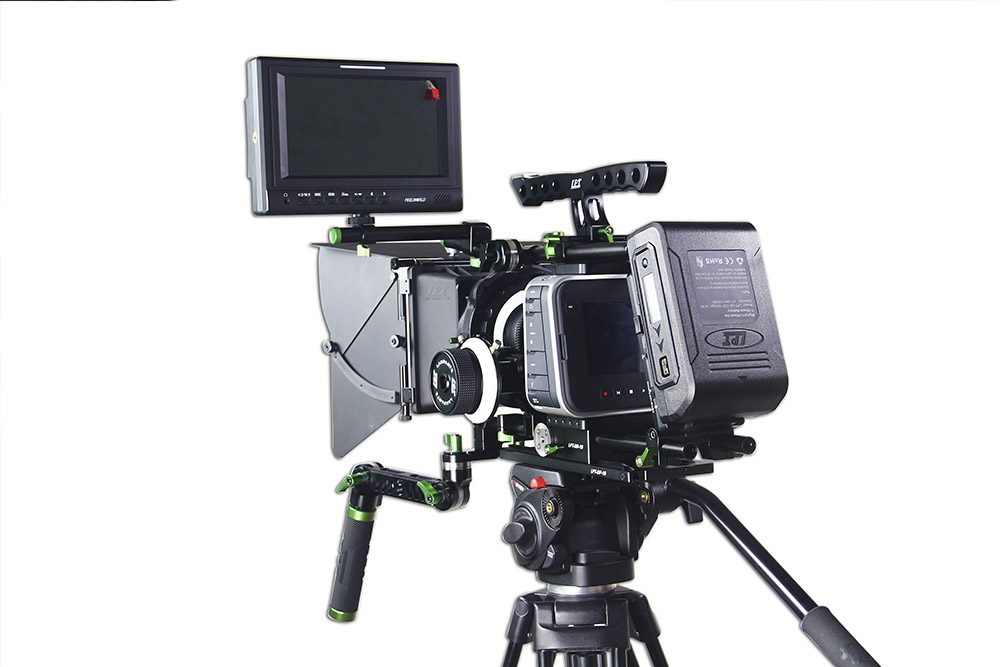

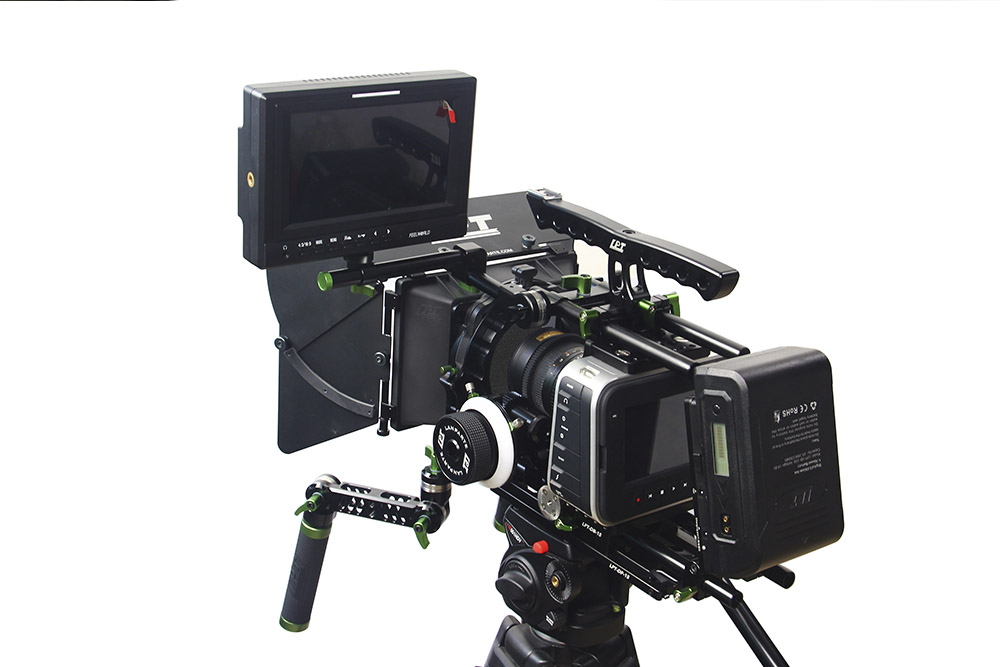

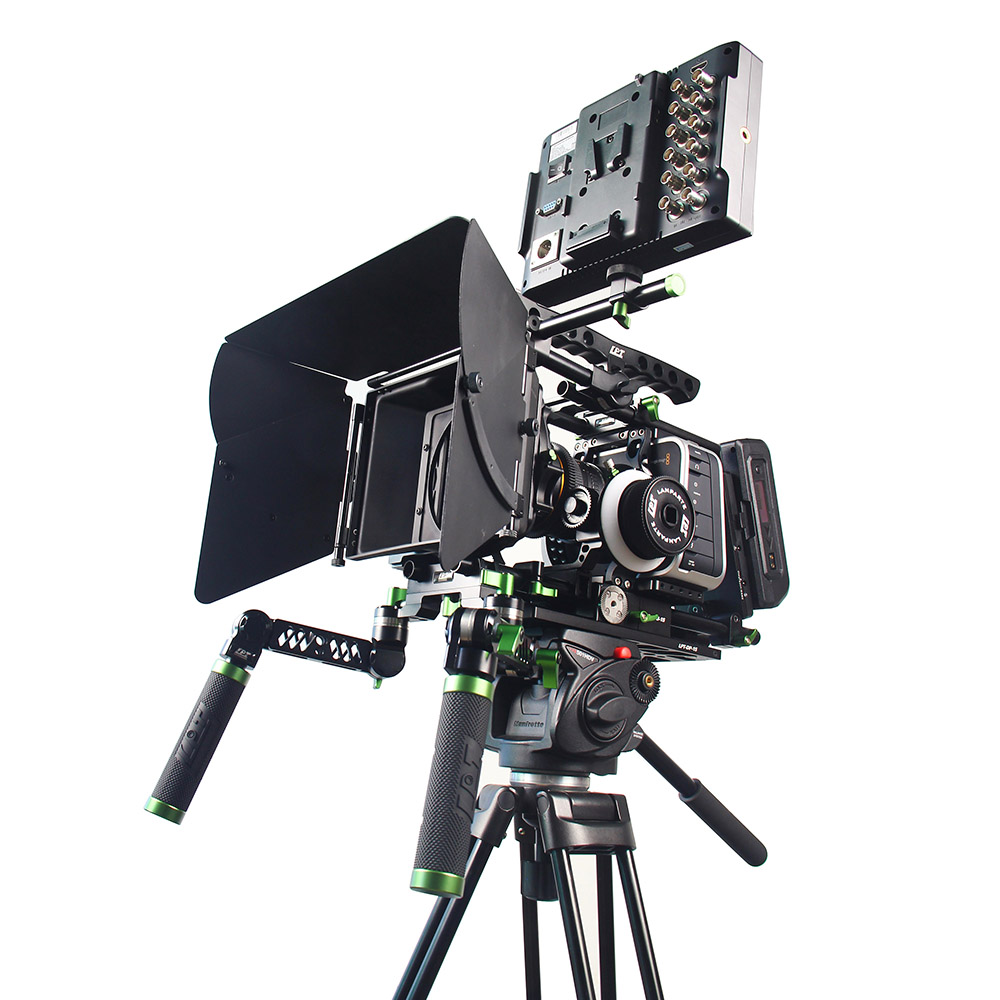

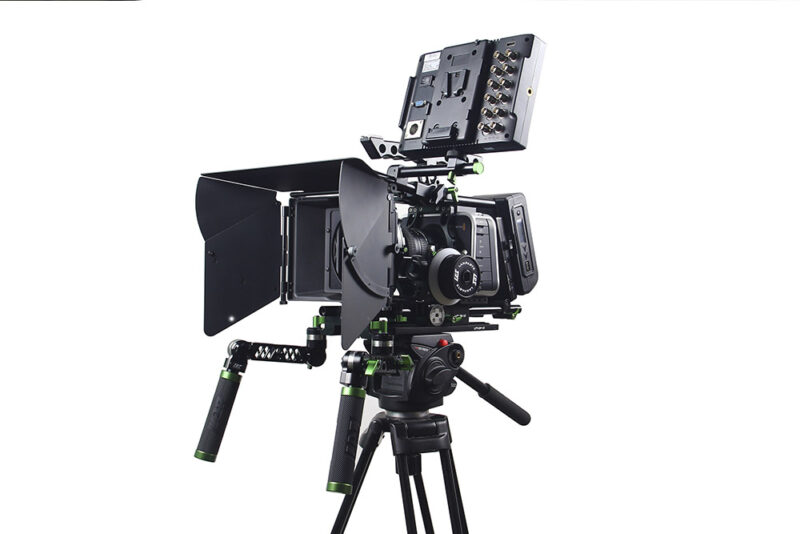

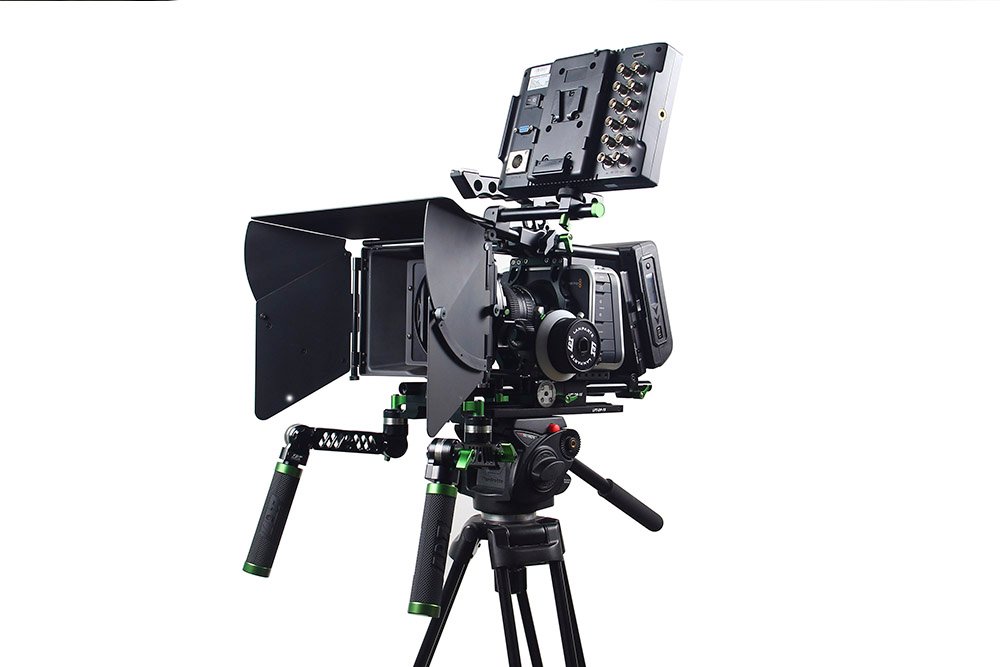

The Lanparte Blackmagic Cinema Camera Complete Kit is a 15mm rod shoulder-mount rig for your Blackmagic Cinema Camera or Production Camera 4K, complete with a camera cage, follow focus, matte box, and external V-Mount battery power solution. The cage comes included with a top handle, 15mm baseplate, dovetail plate that allows forward/backward adjustment on a tripod, and a Magic Arm for attaching an EVF or monitor. To complete the shoulder-mounted rig, a shoulder support with 7.9″ 15mm rods is included, which attaches to the rear of the rig using a height riser clamp, as well as the Universal Grip V2 with adjustable dual handgrips.

The cage consists of a top cheese plate, bottom cheese plate, and support arms that add 1/4″-20 and 3/8″-16 accessory mounting threads. It also features air vents integrated into the design to allow better airflow and prevent overheating. Access to all common camera functions, the connections, battery, and SSD slots remains unobstructed. The cage securely attaches to the baseplate via two 1/4″-20 screws.

The baseplate supports a pair of included 11.8″ 15mm rods, which allow attachment of the follow focus, matte box, handgrips, shoulder support, and V-Mount battery plate. ARRI standard rosettes on the sides of the baseplate let you attach additional accessories. The dovetail plate has 1/4″-20 and 3/8″-16 threads for attaching to a tripod. The baseplate slides onto the dovetail plates, locking in place using a side lever. The extra length of the dovetail plate lets you adjust the position of the camera rig forward or backward to help balance it on the tripod.

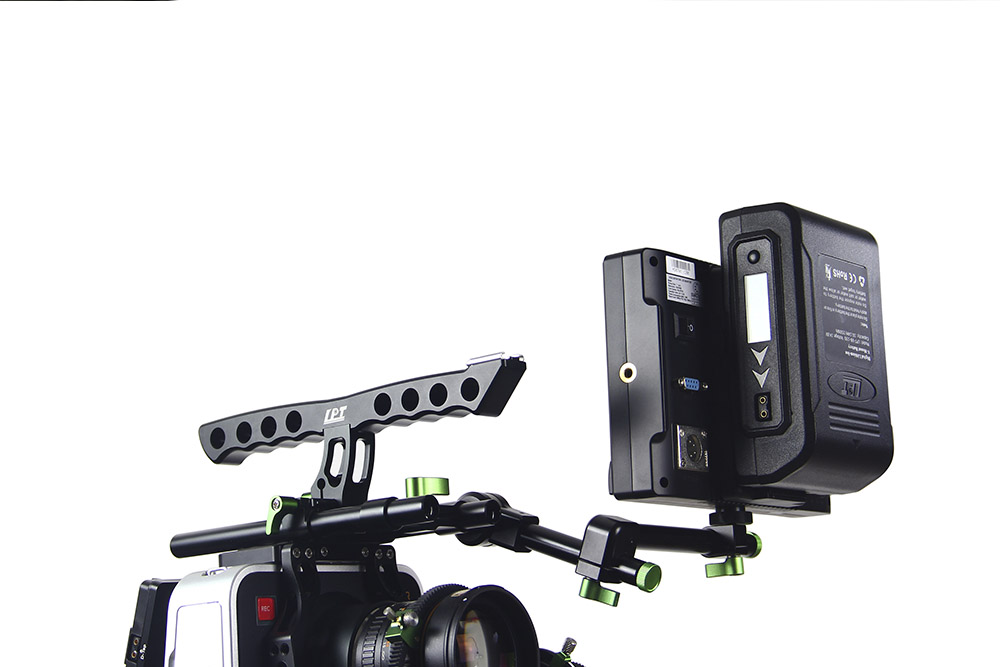

The top handle features a long, ergonomic design for versatile and comfortable handling. It attaches to the top of the cage via a rail, which also allows for horizontal adjustment. Additionally, the handle has a cold shoe at the front end for attaching mics and other accessories. The top of the cage provides support for a pair of included 7.9″ 15mm rods, useful for adding accessories such a wireless focus motors, or the included Magic Arm. The Magic Arm has a 1/4″-20 screw for mounting an EVF or monitor, and is adjustable vertically and horizontally.

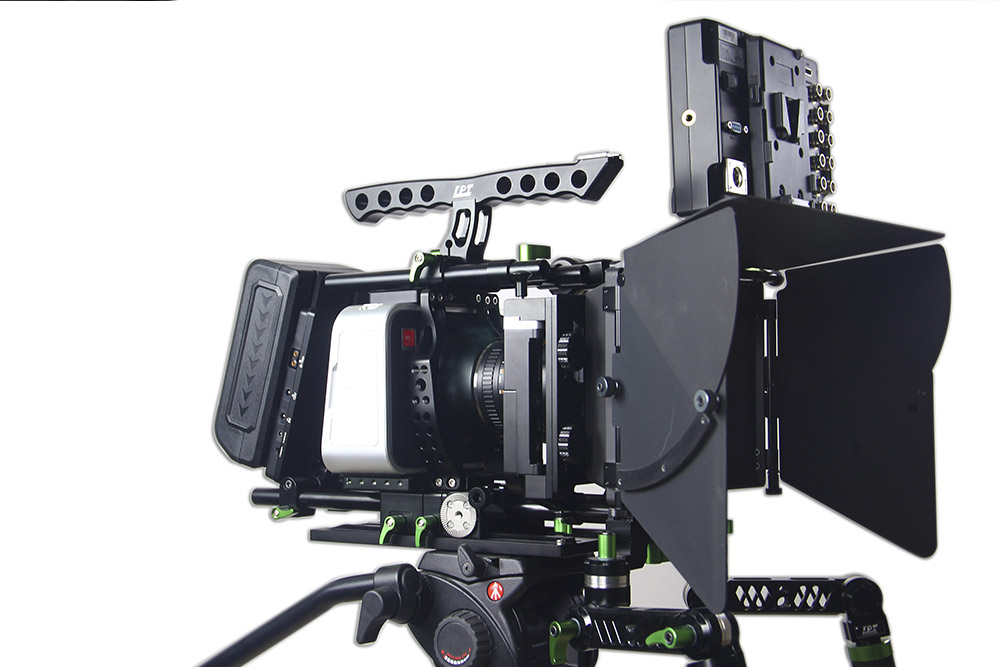

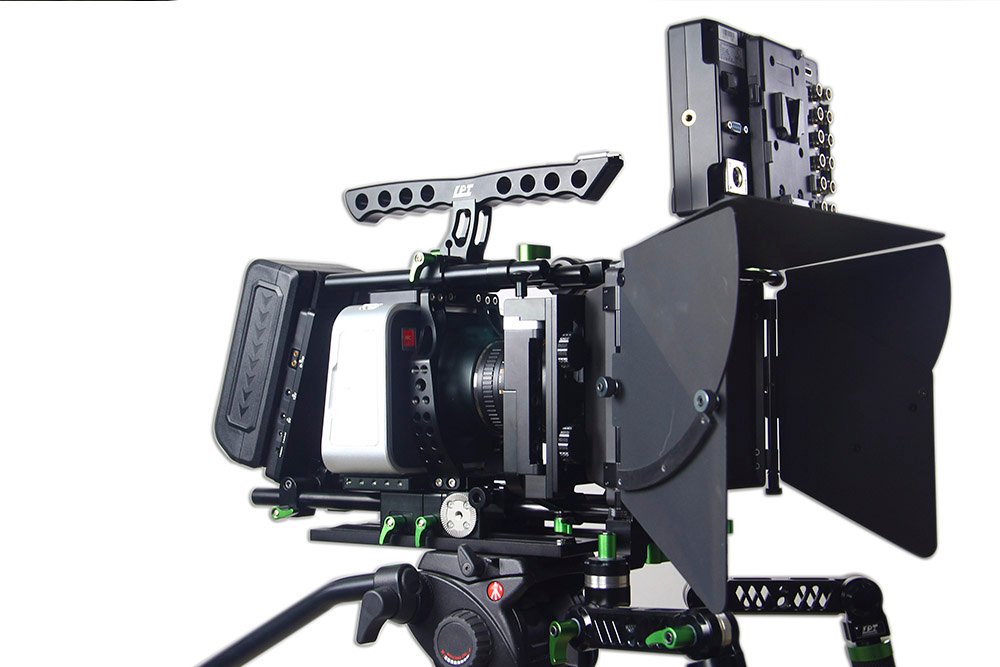

The included matte box fits lenses with a maximum front outer diameter of 100mm. It features two rotating 4 x 4″ filter stages and incorporates a swing-away design for rapid lens changes. Removable top and side flags are also included to block unwanted light from hitting your lens. Both the Universal Grip V2 and follow focus utilize a clamping design that lets you attach them to the 15mm rods without having to remove the matte box. The follow focus features integrated A and B hard stops that let you set start/end points on DSLR lenses with continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.

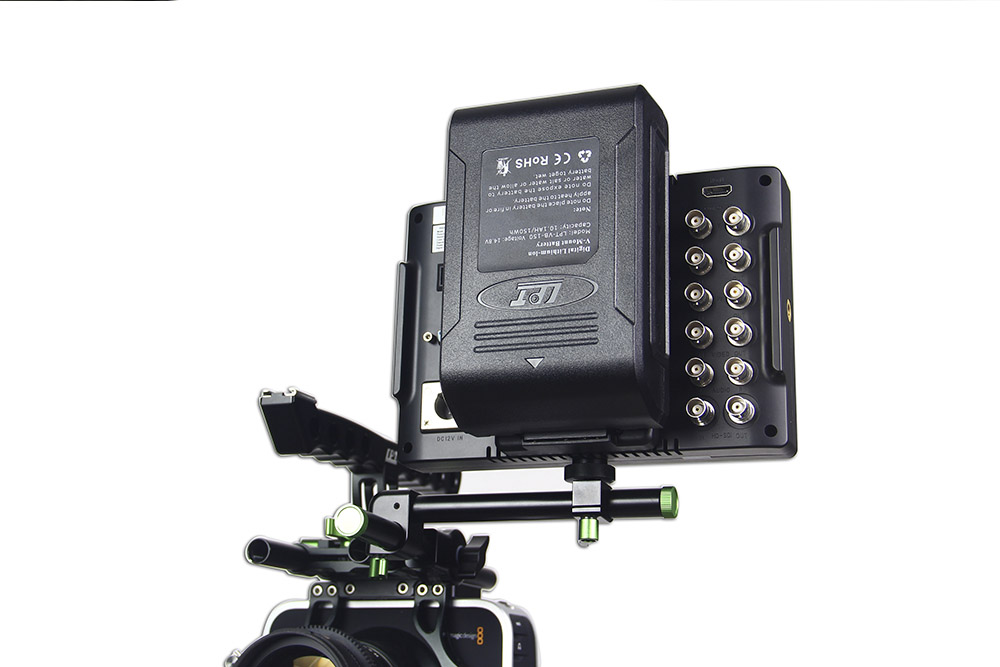

The V-Mount Battery Pinch mounts to the 15mm rods and features a V-mount for attaching the included 150Wh battery. It provides DC outputs with different voltages (5, 7.2, 12, and 15V), letting you power multiple devices simultaneously from the battery. Additionally, the Battery Pinch has a built-in HDMI splitter, useful when you need to send a signal from an HDMI monitor to multiple devices. The battery itself has a D-Tap output which, with the use of the included D-Tap power cable, lets you power the Blackmagic Cinema Camera or Production Camera 4K. The battery can be recharged using the AC power adapter included with the Battery Pinch.

Please see the links below for more information on the components of this kit.

LanParte Blackmagic Cinema Camera Cage

The Lanparte Blackmagic Cinema Camera Cage outfits your Blackmagic Cinema Camera or Production Camera 4K with the fundamental components needed to build a complete video production rig. The cage consists of a top cheese plate, bottom cheese plate, and support arms that add 1/4″-20 and 3/8″-16 accessory mounting threads. It also features air vents integrated into the design to allow better airflow and prevent overheating. Access to all common camera functions, the connections, battery, and SSD slots remains unobstructed. Included with the cage is a top handle, 15mm baseplate, dovetail plate that allows forward/backward adjustment on a tripod, and a Magic Arm for attaching an EVF or monitor. For powering the camera from batteries with a D-Tap output, a 5.5″ long D-Tap power cable is also included.

The cage securely attaches to the baseplate via two 1/4″-20 screws. The baseplate supports a pair of included 11.8″ 15mm rods, which can be used to attach an optional follow focus, matte box, shoulder support, or other rod-mounted accessories. ARRI standard rosettes on the sides of the baseplate let you attach optional rosette handles. The dovetail plate has 1/4″-20 and 3/8″-16 threads for attaching to a tripod. The baseplate slides onto the dovetail plates, locking in place using a side lever. The extra length of the dovetail plate lets you adjust the position of the camera rig forward or backward to help balance it on the tripod.

The top handle features a long, ergonomic design for versatile and comfortable handling. It attaches to the top of the cage via a rail, which also allows for horizontal adjustment. Additionally, the handle has a cold shoe at the front end for attaching mics and other accessories. The top of the cage provides support for a pair of included 7.9″ 15mm rods, useful for adding accessories such a wireless focus motors, or the included Magic Arm. The Magic Arm has a 1/4″-20 screw for mounting an EVF or monitor and is adjustable vertically and horizontally.

Key Features

  • Cage for Blackmagic Cinema Camera and Production Camera 4K
  • 1/4″-20 and 3/8″-16 accessory threads
  • 15mm rod baseplate
  • Dovetail plate with 1/4″-20 and 3/8″-16 tripod mount threads
  • ARRI rosettes on the sides of the baseplate for attaching optional handles
  • Horizontally adjustable ergonomic top handle with cold shoe
  • Magic Arm EVF/monitor mount
  • Air vents are integrated into the design to allow for better airflow
  • Pair of 11.8″ and 7.9″ rod included
  • D-Tap power cable

LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box

The LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.

The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters.

Lightweight Construction

The matte box itself is made out of ABS plastic, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.

Swing Away Design

The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don’t have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.

Rotating 4 x 4 Filter Trays

The matte box features two independently rotating 4 x 4 filter trays; this allows you to simultaneously rotate two filters, such as one polarizer and one graduated filter, or even two graduated filters, for creative effect. The filter stages each rotate 90° and feature a tray locking knob, which allows you to adjust the height of the filter and lock it in place. This is a useful feature when using graduated filters in your matte box. The filter trays feature a center detent, so you can easily position them exactly in the middle.

Top & Side Flags

  • The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don’t move during the shot.
  • Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.

Anti-Reflection Inserts

The four included anti-reflection inserts work with your lenses. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image.

UPC: 840534105013

LanParte Follow Focus V2 with Hard Stops for 15mm Rods

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

Key Features

  • Clamps onto 15mm LWS rods
  • Integrated A/B hard stops
  • Copper gear and precision bearing
  • Standard 0.8 pitch drive gear included
  • Drive gear can be flipped to either side of gearbox
  • Sliding dovetail design for adjusting to different sized lenses
  • Removable magnetic marking disc
  • ARRI standard 12mm accessory port
  • CNC machined aluminum components
  • Adjustable lens gear ring included

UPC: 840534104016

LanParte Universal Grip V2 for 15mm Rods

The Lanparte Universal Grip V2 is an adjustable dual handle system for 15mm LWS rod support rigs. Each handle features three points of adjustment, letting you position each handgrip at the desired height, angle, and distance from the rods. Silica-gel surface on the handles provide a comfortable, non-slip grip. For easy attachment and removal of the system without having to remove other rod-mounted accessories, the Universal Grip V2 utilizes a quick release 15mm rod clamp, which locks in place using a single lever.

  • Three points of adjustment for grip placement
  • Spring-loaded steel spindle joint locking system
  • Quick release 15mm rod clamp with single tightening lever
  • 1/4″-20 and 3/8″-16 threaded holes on each arm for mounting accessories
  • CNC-machined aluminum construction
  • Hollowed-out design to reduce weight

UPC: 840534107048

LanParte Shoulder Support for DSLR Camera Rig

Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.

Ergonomic design
Compatible with 15mm rod systems
Power supply system can be mounted on it
A standard Height Raiser Clamp is included
Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
Hollow design makes unit lightweight at 21.9 oz
Precision CNC machined

LanParte VB-150 Sony V-Mount Li-Ion Battery

Power your camera and accessories with this VB-150 Sony V-Mount Li-Ion Battery from Lanparte. With 150 Wh of power output, this battery offers more power than standard camera internal batteries. Since this battery can support up to 10 amp loads, larger cameras can also be powered. A D-tap output can provide power to compatible secondary accessories like lights and monitors. A side LCD on the battery conveniently displays remaining capacity so you can keep track of when you need to recharge.

LanParte VBP-01 V-Mount Battery Pinch

Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.

Battery charging input
V-Mount
Built-in HDMI splitter
15mm rod connectors
USB charging port for mobile devices
Can be mounted to the back of the rig as counterweight



Specification

󠀡󠀡

LanParte Blackmagic Cinema Camera Cage Specs

Accessory Mount Thread Sizes 1/4″-20 and 3/8″-16
Tripod Mounting Thread 1/4″-20 and 3/8″-16
15mm Rods 2 x 11.8″ (300 mm)
1 x 7.9″ (200 mm)
Dimensions (WxHxD) 4.80 x 11.03 x 9.64″ (122.00 x 280.20 x 244.80 mm) (excluding rods)
Packaging Info
Package Weight 5.2 lb
Box Dimensions (LxWxH) 14.4 x 12.4 x 3.4″

LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box Specs

Matte Box
Filter Type 4 x 4
Total Filter Stages 2
Rotating Stages 2 Independent
Degree of Rotation 90°
Materials ABS plastic
Aluminum
Dimensions Matte box
W x H x D: 8.3 x 5.9 x 2.8″ / 210 x 150 x 71 mmTop Flag
Min Width: 8.3″ / 210
Max Width: 13.1″ / 332.4
Weight 2.4 lb / 1.1 kg
Packaging Info
Package Weight 3.9 lb
Box Dimensions (LxWxH) 15.8 x 12.2 x 6.1″

LanParte Follow Focus V2 With Hard Stops For 15mm Rods Specs

Included Drive Gear 0.8 MOD
Rod Standard 15 mm LWS / 60 mm Spacing
Number of Sides Single-Sided
Built-In Hardstops 2, Fixed
Marking Disk Yes
Switchable Handwheel Speed No
Dimensions 7.44 x 4.31 x 3.16″ / 188.97 x 109.6 x 80.25 mm
Weight 1.12 lb / 0.51 g
Packaging Info
Package Weight 1.535 lb
Box Dimensions (LxWxH) 9.55 x 5.75 x 4.15″

LanParte Universal Grip V2 For 15mm Rods Specs

Accessory Mounting Threads 2 x 3/8″-16 (one on each arm)
1 x 1/4″-20 (one on each arm)
Dimensions (WxHxD) 8.9 x 13.5 x 1.2″ / 22.6 x 34.3 x 3.0 cm
Weight 2.46 lb / 1.12 kg
Packaging Info
Package Weight 2.815 lb
Box Dimensions (LxWxH) 15.3 x 8.65 x 2.5″

LanParte Shoulder Support For DSLR Camera Rig Specs

Material Aluminum alloy, rubber pad
Dimensions 7.9 x 4.3 x 4.5″ (20.0 x 10.9 x 11.3 cm)
Weight 21.9 oz (620.0 g)
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 8.6 x 4.7 x 3.5″

LanParte VB-150 Sony V-Mount Li-Ion Battery Specs

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Capacity (Wh) 150 Wh
Output Voltage 14.8 VDC
Accessory Port 1 x D-Tap
Dimensions (W x H x D) 4.2 x 6.4 x 2.2″ / 106 x 163 x 55 mm
Weight 2.4 lb / 1.1 kg
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 7.2 x 4.6 x 3.2″

LanParte VBP-01 V-Mount Battery Pinch Specs

Power
Output Voltage 5 to 15 VDC
General
Connectors 5 x DC Jack
1 x D-Tap
1 x USB Type-A
2 x HDMI
Battery Plate Type V-Mount
Accessory Mounting 19 mm Rod Mount
Dimensions 10 x 7 x 4″ / 25.4 x 17.8 x 10.2 cm
Weight 5 lb / 2.3 kg
Packaging Info
Package Weight 2.25 lb
Box Dimensions (LxWxH) 9.2 x 6.2 x 3.6″

What's Included

󠀡󠀡1.Matte Box, V1 (MB-01)
2.Follow Focus,V2 (FF-02)
3.Universal Grip (UG-02)
4.Gear ring,V2 (FFGR-02)
5.Top Handle (TH-02)
6.Top Cheese Plate (TCP-01)
7.Side Support-Arm (Cage-01)
8. Bottom Cheese Plate (BCP-01)
9.Dovetail Plate (DB-15)
10.2*300mm Rods and 2*200mm Rods (AR-200/ 300)
11.Dovetail Base Plate (DP-15)
12.Magic-Arm (MA-02)
13.Should Pad Support (SS-01)
14.Height Raiser Clamp (HRC-01)
15.V-Mount Battery (VB-150)
16.V-Mount Battery Pinch (VBP-01)
17.D-tap cable for BMCC (DC-55-25)
