  • 15mm Rod Baseplate
  • 1.6″ of Height Adjustment
  • Quick-Release Camera Plate
  • 1/4″-20 and 3/8″-16 Camera Screws

$221.00

Description

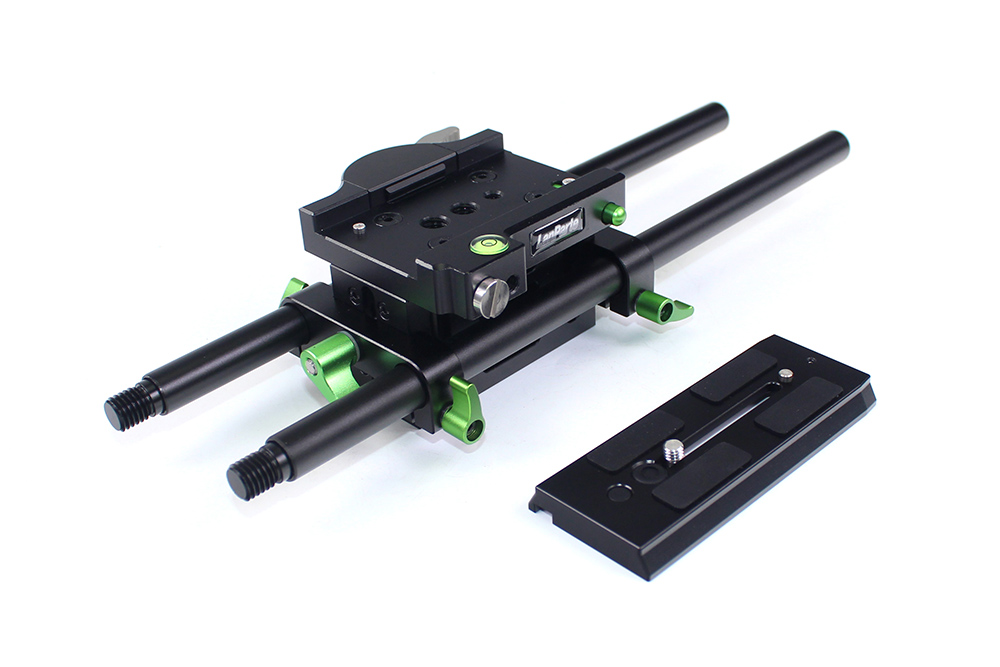

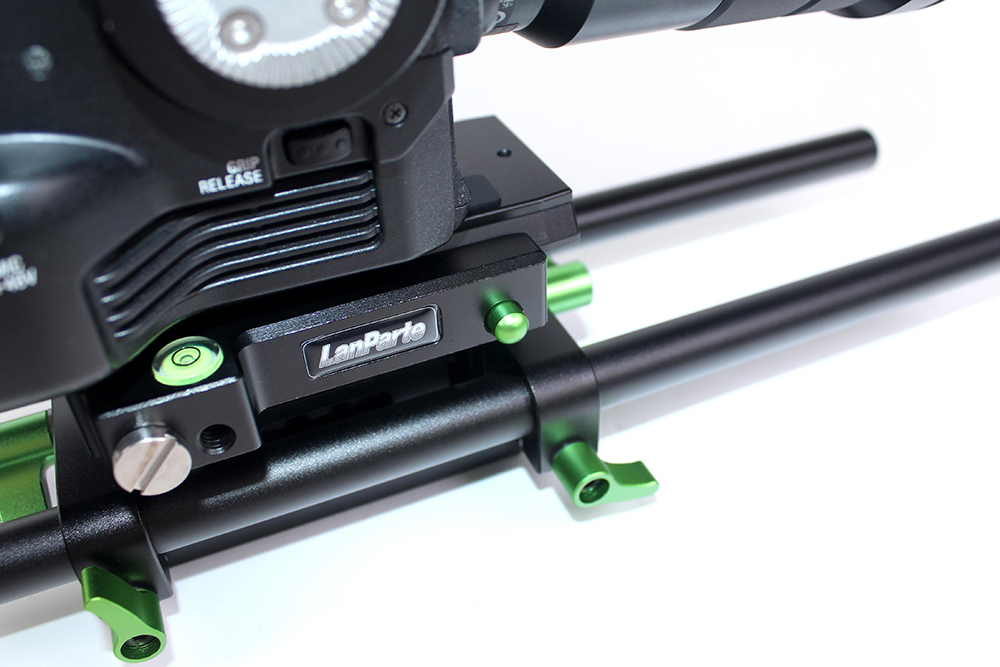

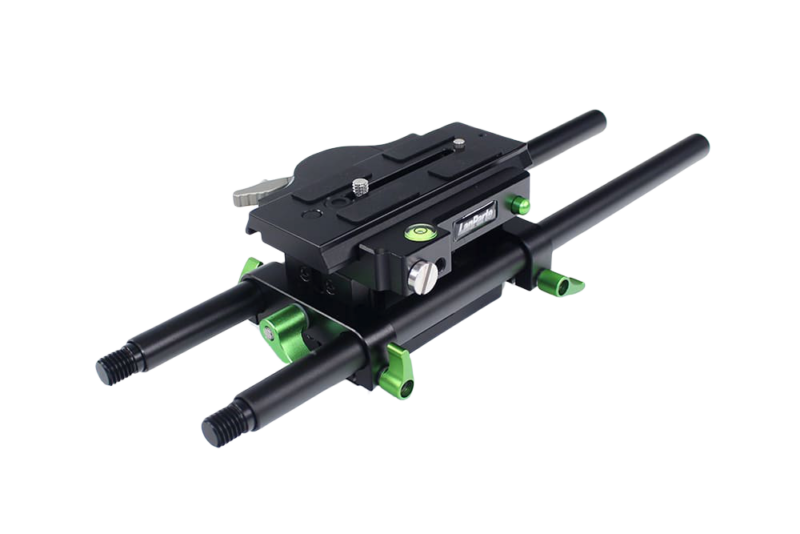

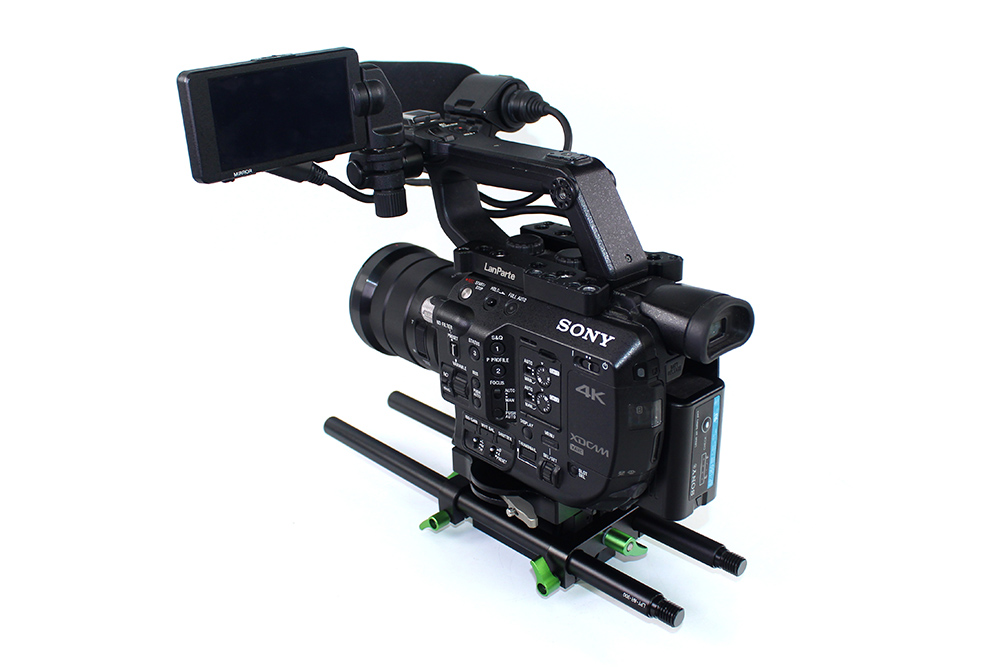

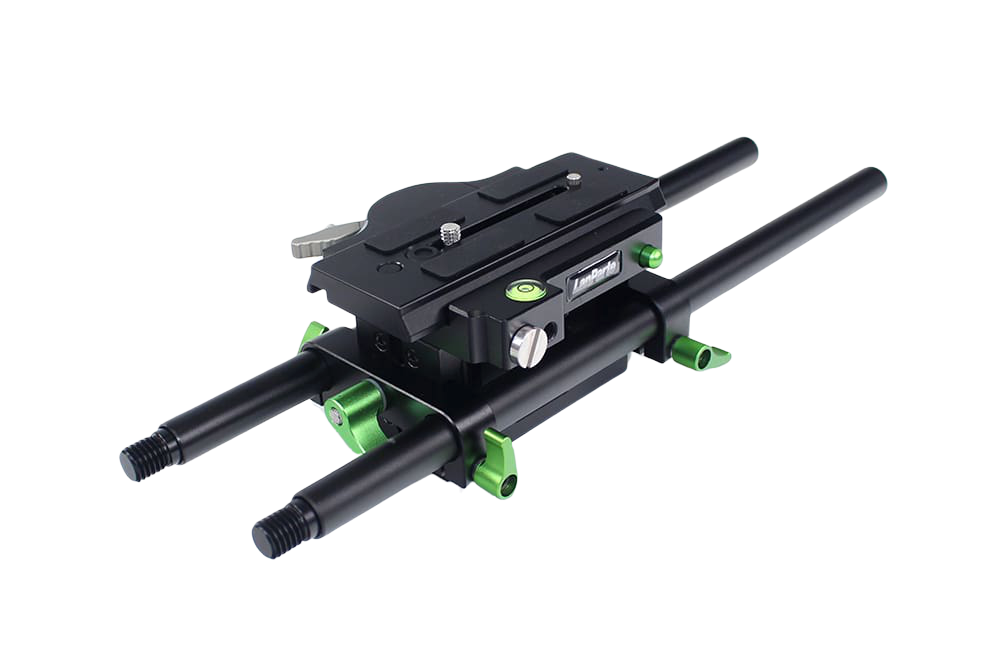

The Lanparte Bridge Plate for Manfrotto 501 Fluid Head features a height-adjustable baseplate with dual 15mm LWS rod clamps and a quick-release camera plate. The height of the baseplate is adjustable up to 1.6″ by loosening a single knob, allowing you to achieve proper lens height when using a matte box or follow focus. A pair of 15mm rods come included.

The quick-release plate features a dovetail design that slides or drops onto the baseplate, locking into place using a release lever. The plate includes 1/4″-20 and 3/8″-16 camera screws, with threads on the side of baseplate provided for storing the unused screw. A safety lock prevents the plate from sliding off the baseplate when attached. For mounting on tripods and other equipment, there are 1/4″-20 and 3/8″-16 threaded holes on the bottom of the baseplate.

Baseplate with 1.6″ height adjustment
15mm LWS rod clamps threaded ends for rod extension
Pair of 11.8″ 15mm rods included
Quick-release dovetail plate with 1/4″-20 and 3/8″-16 screws
Release lever with integrated safety trigger
1/4″-20 and 3/8″-16 holes for storing unused camera screw
1/4″-20 and 3/8″-16 tripod screws
CNC machined aluminum construction

Specification

󠀡󠀡

Bridge Plate
Compatibility Manfrotto 501
Rod Support 2 x 15 mm
Accessory Mounting 1/4″-20 and 3/8″-16
Rods
Material Aluminum
Diameter 0.6″ / 15 mm
Thread Size 0.5 in / 12 mm
Length 11.8 in / 300 mm
Weight 2.4 oz / 69 g

What's Included

󠀡󠀡1.Bridge Plate (BP-02C)

2.2*300mm Aluminum Rods (AR-300)

Shipping Info

󠀡󠀡

Package Weight 2.19 lb
Box Dimensions (LxWxH) 15.9 x 5.7 x 3.7″
