  • 15mm Rod Shoulder-Mount Kit for DSLRs
  • Quick-Release Baseplate
  • Single Handle with Rubberized Grip
  • Shoulder Support with Offset Bracket

$639.00

Description

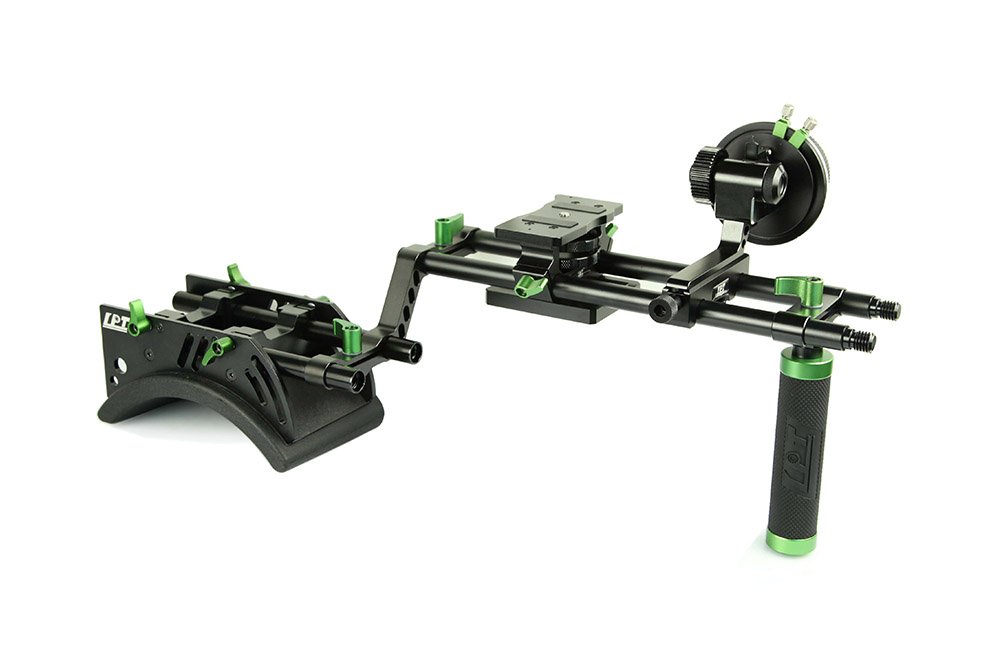

The Lanparte Single Handle DSLR Camera Rig Kit is a 15mm-rod shoulder-mount solution for DSLRs or mirrorless cameras and comes complete with a clamp-on follow focus and a quick-release baseplate. The baseplate includes a pair of 11.8″ 15mm rods to support the follow focus and a single handle with non-slip rubberized grip. The single handle setup lets you support the rig with one hand, while freeing up your other hand to operate the follow focus for run-and-gun shooting. To complete the shoulder-mounted system, a shoulder support with 7.9″ 15mm rods is included, which attaches to the rear of the rig using an offset clamp. The offset design places your camera’s rear LCD screen in front of your eyes for easier viewing while shooting.

The follow focus uses a clamping design that lets you attach it to the rods without having to remove the handles or other rod-mounted accessories. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.

Please see the links below for more information on the components of this kit.

LanParte Single Handle for 15mm Rods

The Lanparte Single Handle allows for single-handed support of 15mm LWS rod shoulder rigs, leaving your other hand free to focus the lens or adjust camera settings as you shoot. It is constructed from CNC machined aluminum and features a non-slip silica-gel grip and a dual rod clamp that places the handle directly below a pair of 15mm rods.

LanParte Follow Focus V2 with Hard Stops for 15mm Rods

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

Key Features

  • Clamps onto 15mm LWS rods
  • Integrated A/B hard stops
  • Copper gear and precision bearing
  • Standard 0.8 pitch drive gear included
  • Drive gear can be flipped to either side of gearbox
  • Sliding dovetail design for adjusting to different sized lenses
  • Removable magnetic marking disc
  • ARRI standard 12mm accessory port
  • CNC machined aluminum components
  • Adjustable lens gear ring included

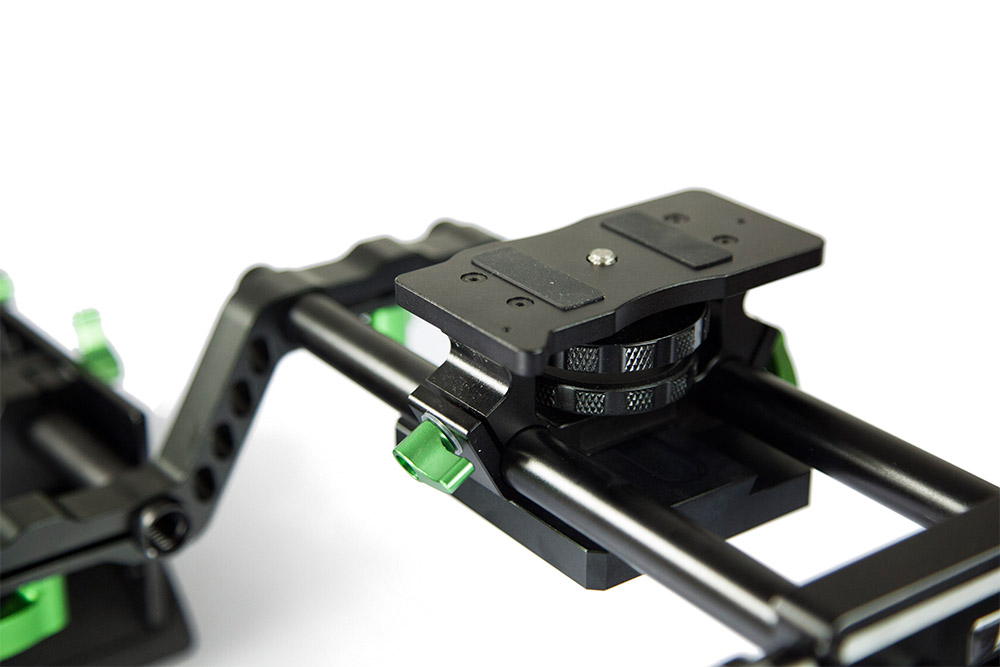

LanParte Quick Release Baseplate

The Quick Release Baseplate from Lanparte is a quick-release baseplate designed to be used with a standard 15mm rod system. The bottom of the plate features 1/4″ and 3/8″ threads for tripod mounting. Two 11.8″ aluminum rods are included.

Lightweight at 19.4 oz
For 15mm rod system
1/4″ and 3/8″ camera screw threads under plate for tripod mounting

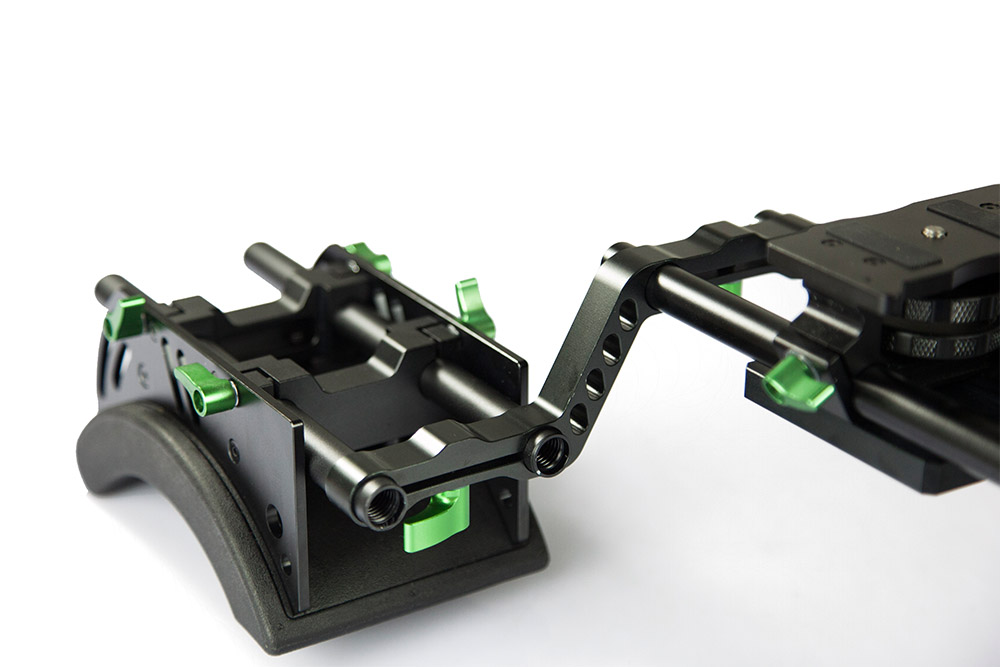

LanParte Shoulder Support for DSLR Camera Rig

Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.

Ergonomic design
Compatible with 15mm rod systems
Power supply system can be mounted on it
A standard Height Raiser Clamp is included
Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
Hollow design makes unit lightweight at 21.9 oz
Precision CNC machined

LanParte Offset Clamp

Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF.

Offsets base plate from shoulder pad
Two double 15mm rod clamps
Hollow design saves weight
Streamlined knob
CNC machined

Specification

󠀡󠀡

LanParte Single Handle For 15mm Rods Specs

Dimensions (HxWxD) 6.8 x 3.1 x 1.2″ (17.3 7.8 x 3.1 cm)
Weight 6.3 oz (180 g)
Packaging Info
Package Weight 0.45 lb
Box Dimensions (LxWxH) 7.5 x 3.6 x 1.5″

LanParte Follow Focus V2 With Hard Stops For 15mm Rods Specs

Included Drive Gear 0.8 MOD
Rod Standard 15 mm LWS / 60 mm Spacing
Number of Sides Single-Sided
Built-In Hardstops 2, Fixed
Marking Disk Yes
Switchable Handwheel Speed No
Dimensions 7.44 x 4.31 x 3.16″ / 188.97 x 109.6 x 80.25 mm
Weight 1.12 lb / 0.51 g
Packaging Info
Package Weight 1.535 lb
Box Dimensions (LxWxH) 9.55 x 5.75 x 4.15″

LanParte Quick Release Baseplate Specs

Rod System 15 mm
Thread Size 1/4″ and 3/8″
Dimensions 12.6 x 5.1 x 2.4″ (32 x 13 x 6 cm)
Weight 19.4 oz (550 g)
Packaging Info
Package Weight 1.7 lb
Box Dimensions (LxWxH) 10.2 x 8.3 x 5.9″

LanParte Shoulder Support For DSLR Camera Rig Specs

Material Aluminum alloy, rubber pad
Dimensions 7.9 x 4.3 x 4.5″ (20.0 x 10.9 x 11.3 cm)
Weight 21.9 oz (620.0 g)
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 8.6 x 4.7 x 3.5″

LanParte Offset Clamp Specs

Vertical Offset 1.77″ (45 mm)
Horizontal Offset 4.13″ (105 mm)
Dimensions 7.2 x 0.6 x 3.1″ (18.3 x 1.5 x 7.8 cm)
Weight 3.5 oz (100 g)
Packaging Info
Package Weight 0.22 lb
Box Dimensions (LxWxH) 8.55 x 5.3 x 0.85″

What's Included

󠀡󠀡1.Single Handle (SH-01 )
2.Follow Focus,V2 (FF-02)
3.Gear Ring,V2 (FFGR-02)
4.Quick Release Plate (QRP-01)
5.2*300mm Aluminum Rods (AR-300)
6.Offset Clamp (OFC-01)
7.Shoulder Support (SS-01)
8.Height Raiser Clamp (HRC-01)
