  • 15mm-Rod Shoulder-Mount Rig
  • Height Adjustable Bridge Plate
  • C-Shaped Support Arm
  • Adjustable Dual Handgrip System

$1,328.00

Description

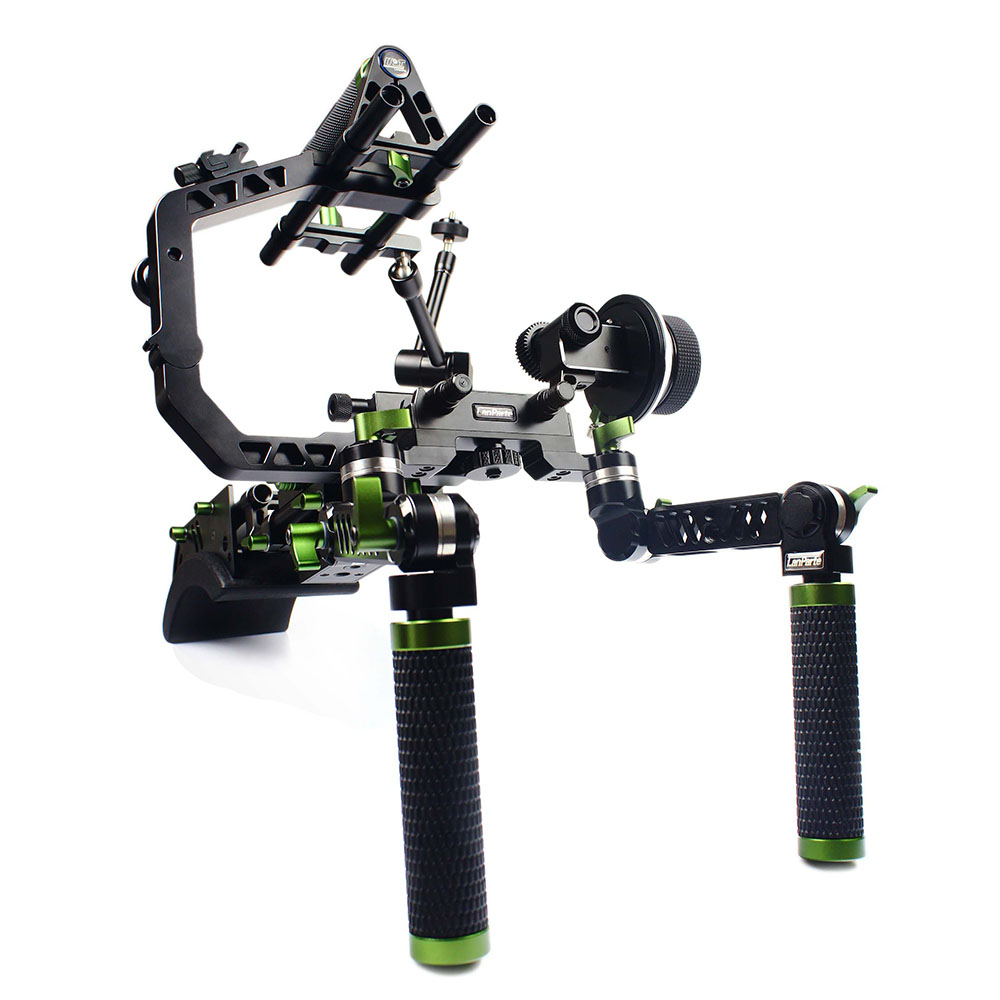

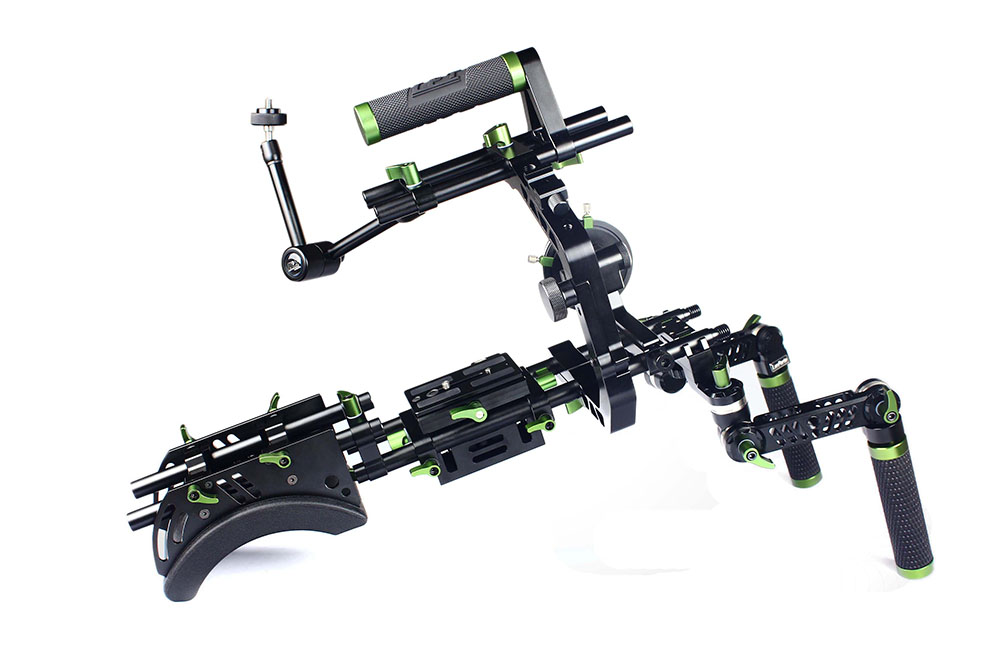

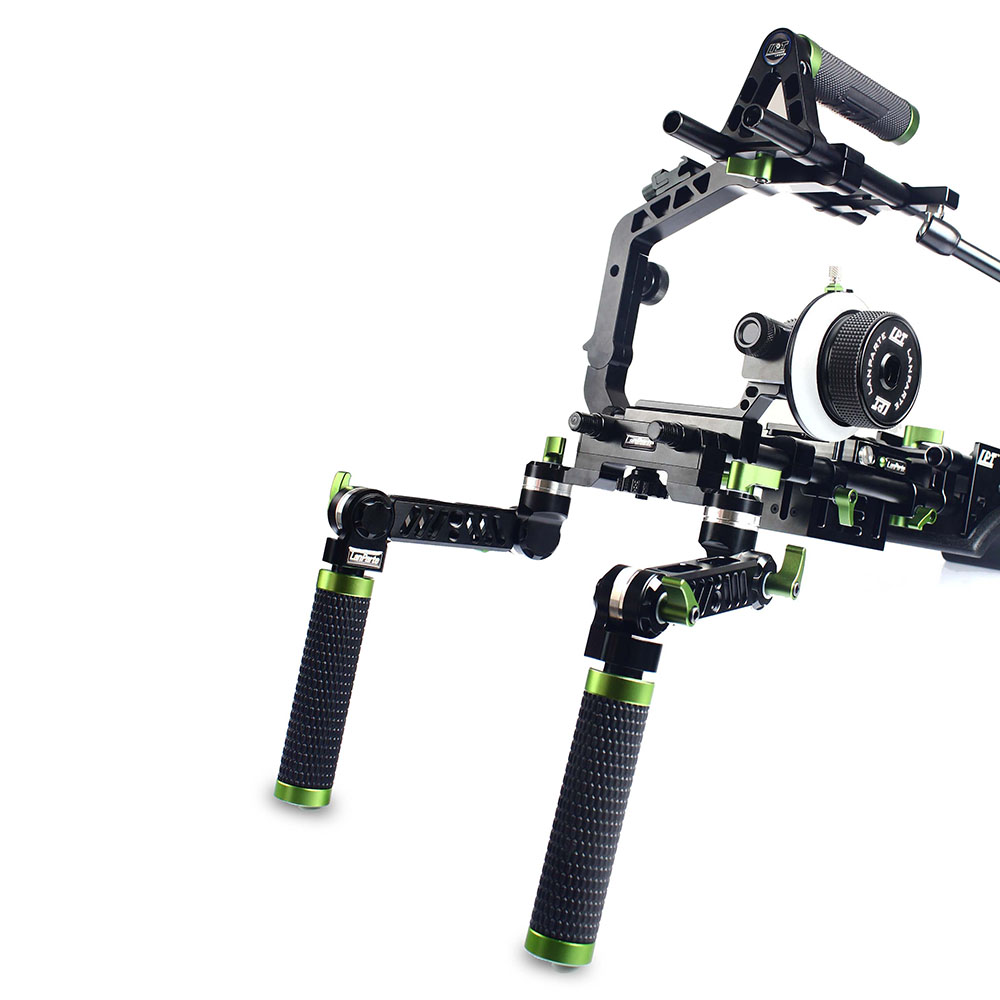

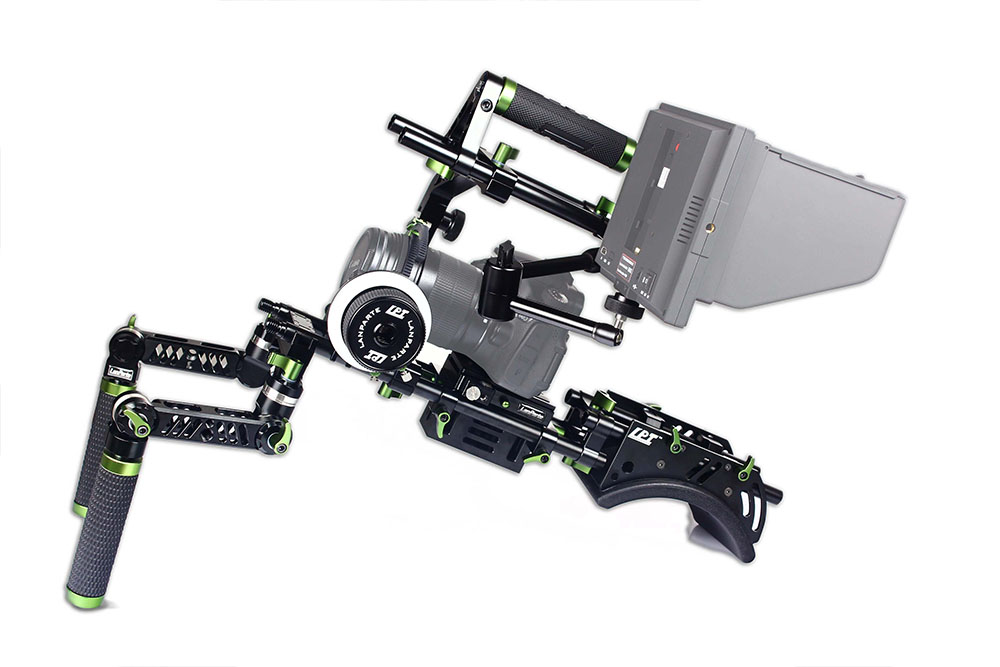

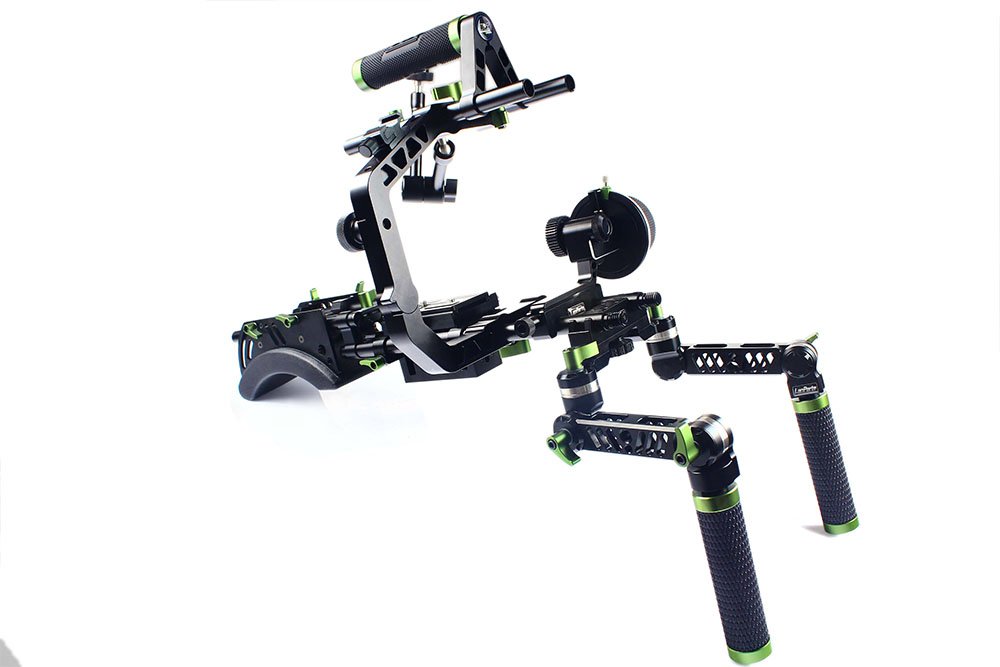

The Lanparte Shoulder-Mount Combo Rig Kit with ABS Protection Case provides you with a 15mm-rod shoulder-mount solution for DSLRs and compact camcorders and a custom case to hold and protect the rig components. The rig is built around a 15mm rod bridge plate and a C-shaped support arm. A pair of 11.8″ 15mm rods support an included follow focus and Universal Grip V2, which is an adjustable dual handle system that lets you position each rubberized handgrip at the desired height, angle, and distance from the rods. To complete the shoulder-mounted rig, a shoulder support with 7.9″ 15mm rods is included, which attaches to the rear of the rig using a height riser clamp. This lets you position the camera slightly above or slightly below the level of the shoulder pad.

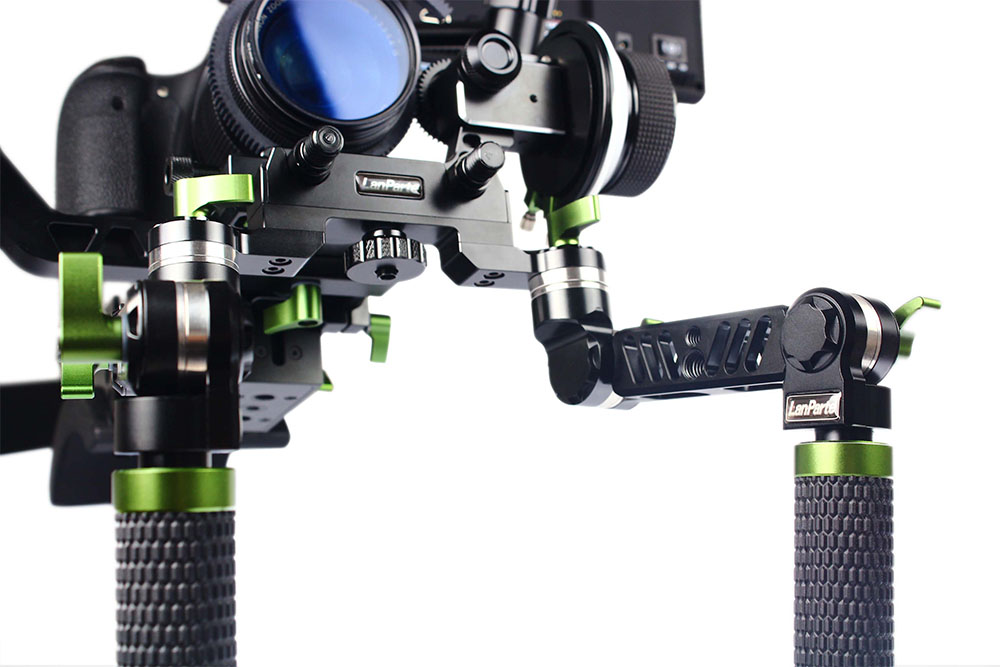

Your camera attaches to the bridge plate via a 1/4″-20 or 3/8″-16 screw. It offers 1.6″ of height adjustment and features a quick-release camera plate for easy removal of your camera from the rig. The C-shaped support arm is also height adjustable and can swing open to the side when changing lenses. It mounts onto the rods included with the bridge plate and provides additional 15mm rod clamps at the top for adding an included top handle via a pair of 7.8″ rods. In addition to the top handle, rods on top of the rig are useful for adding accessories such as the included Magic Arm for mounting an EVF or monitor.

Both the Universal Grip V2 and follow focus utilize a clamping design that lets you attach them to the 15mm rods without having to remove other optional rod-mounted accessories, such as a matte box. The follow focus features integrated A and B hard stops that let you set start/end points on DSLR lenses with continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.

Please see the links below for more information on the components of this kit.

LanParte Bridge Plate

The Lanparte Bridge Plate features a height-adjustable baseplate with dual 15mm LWS rod clamps and a quick-release camera plate. The height of the baseplate is adjustable up to 1.6″ by loosening a single knob, allowing you to achieve proper lens height when using a matte box or follow focus. A pair of 11.8″ long 15mm rods come included.

The quick-release plate features a dovetail design that slides or drops onto the baseplate, locking into place using a release lever. The plate includes 1/4″-20 and 3/8″-16 camera screws, with threads on the side of baseplate provided for storing the unused screw. A safety lock prevents the plate from sliding off the baseplate when attached. For mounting on tripods and other equipment, there are 1/4″-20 and 3/8″-16 threaded holes on the bottom of the baseplate.

  • Baseplate with 1.6″ height adjustment
  • 15mm LWS rod clamps threaded ends for rod extension
  • Pair of 11.8″ 15mm rods included
  • Quick-release dovetail plate with 1/4″-20 and 3/8″-16 screws
  • Release lever with integrated safety trigger
  • 1/4″-20 and 3/8″-16 holes for storing unused camera screw
  • Bubble level
  • 1/4″-20 and 3/8″-16 tripod screws
  • CNC machined aluminum construction

LanParte C-Arm

Add more accessories to your camera with the C-Arm from Lanparte. By arching over the top of your camera setup, the C-Arm effectively provides a second set of 15mm rods for attaching useful gadgets such as follow focus motors, articulating arms, recorders, monitors, and more. An integrated shoe-mount can hold a light, a microphone, or other accessory. The top portion folds away from the camera for easier lens changes. To accommodate different camera heights, the top rod section is adjustable to achieve the proper rod-to-optical-center distance.

C-shaped support with 1/4 and 3/8″ threads
Hollowed-out design makes it lightweight at 10 oz
Height-adjustable
You can attach a shoe mount (not included) onto it
Anti-drop knob

LanParte Top Handle for 15mm Rods

The Lanparte Top Handle is designed for camera cages and rigs that use or accept 15mm LWS rods positioned above the camera. It is constructed from CNC machined aluminum and features a dual 15mm rod clamp and a non-slip silica-gel grip. A pair of 7.87″ long aluminum rods come included.

LanParte Universal Grip V2 for 15mm Rods

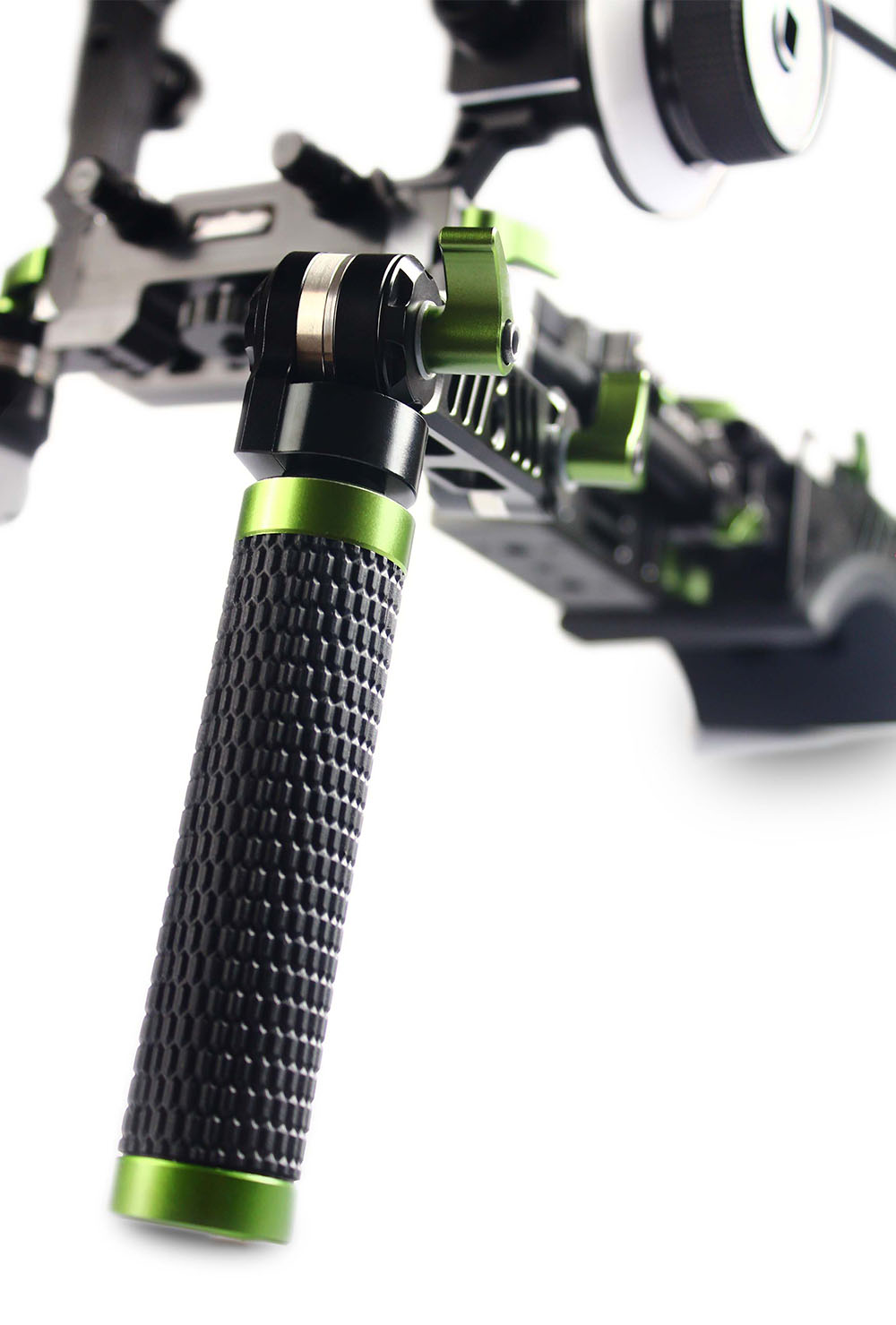

The Lanparte Universal Grip V2 is an adjustable dual handle system for 15mm LWS rod support rigs. Each handle features three points of adjustment, letting you position each handgrip at the desired height, angle, and distance from the rods. Silica-gel surface on the handles provide a comfortable, non-slip grip. For easy attachment and removal of the system without having to remove other rod-mounted accessories, the Universal Grip V2 utilizes a quick release 15mm rod clamp, which locks in place using a single lever.

  • Three points of adjustment for grip placement
  • Spring-loaded steel spindle joint locking system
  • Quick release 15mm rod clamp with single tightening lever
  • 1/4″-20 and 3/8″-16 threaded holes on each arm for mounting accessories
  • CNC-machined aluminum construction
  • Hollowed-out design to reduce weight

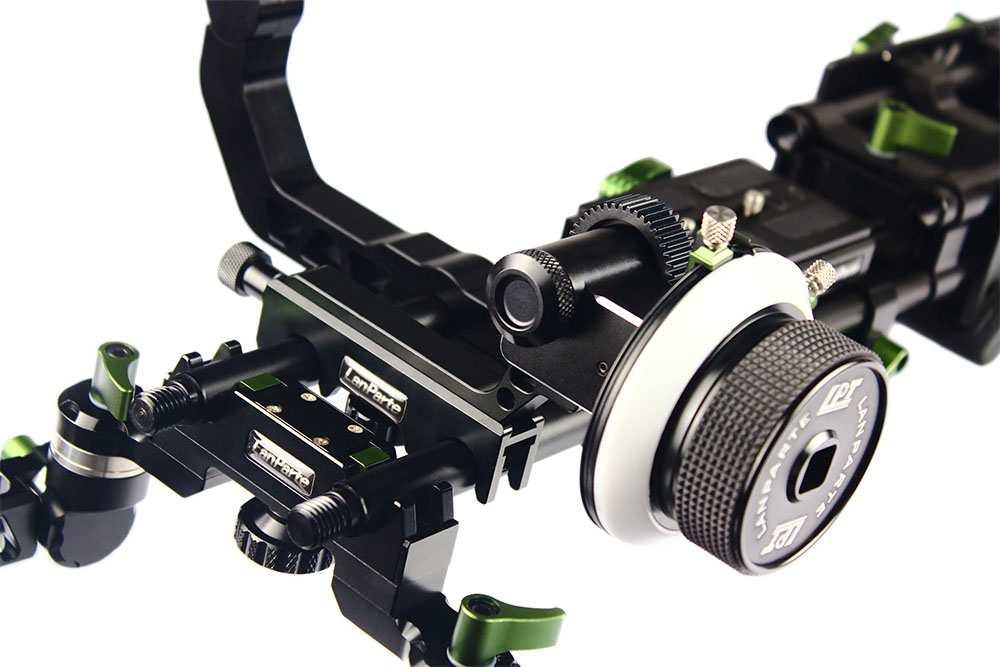

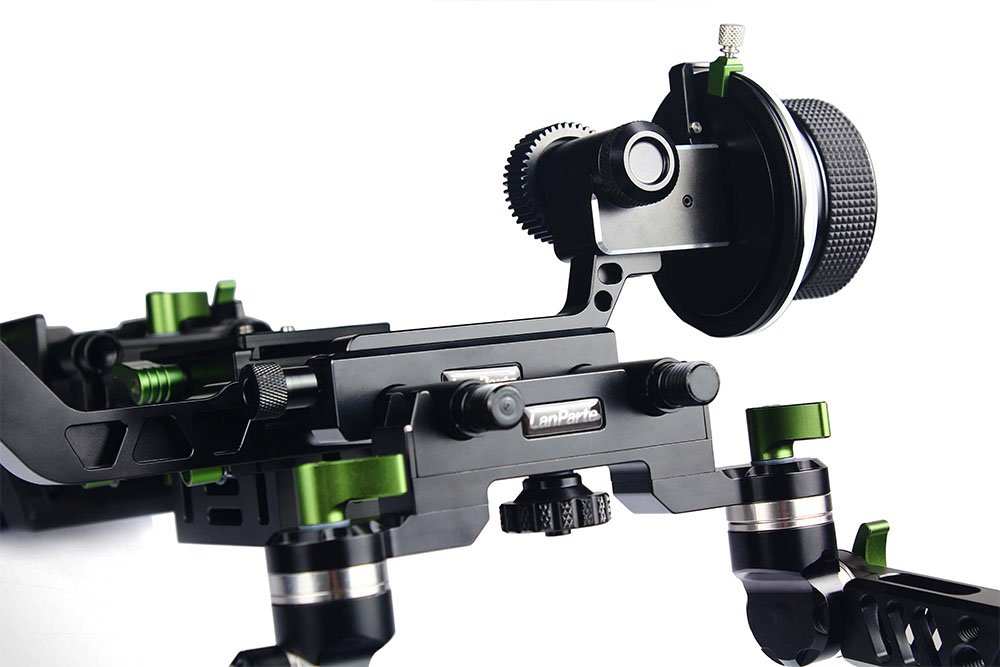

LanParte Follow Focus V2 with Hard Stops for 15mm Rods

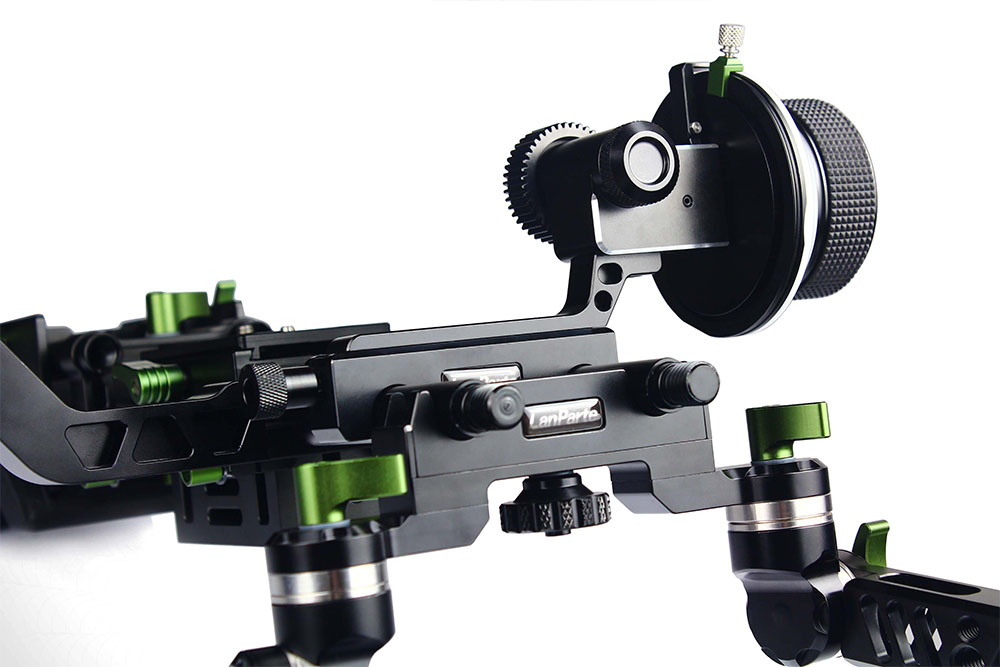

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

Key Features

  • Clamps onto 15mm LWS rods
  • Integrated A/B hard stops
  • Copper gear and precision bearing
  • Standard 0.8 pitch drive gear included
  • Drive gear can be flipped to either side of gearbox
  • Sliding dovetail design for adjusting to different sized lenses
  • Removable magnetic marking disc
  • ARRI standard 12mm accessory port
  • CNC machined aluminum components
  • Adjustable lens gear ring included

LanParte Magic Arm

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.

Angle-adjustable
CNC machined aluminum construction

LanParte Shoulder Support for DSLR Camera Rig

Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.

Ergonomic design
Compatible with 15mm rod systems
Power supply system can be mounted on it
A standard Height Raiser Clamp is included
Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
Hollow design makes unit lightweight at 21.9 oz
Precision CNC machined

LanParte Offset Clamp

Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF.

Offsets base plate from shoulder pad
Two double 15mm rod clamps
Hollow design saves weight
Streamlined knob
CNC machined

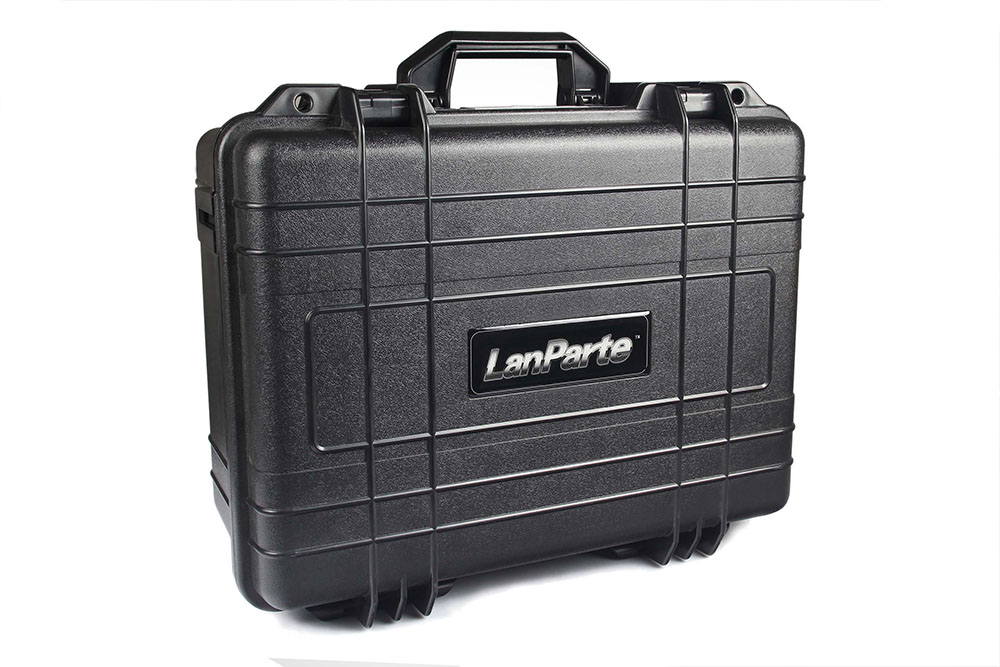

LanParte ABS Protection Suitcase for DSLR Camera Rig Kit

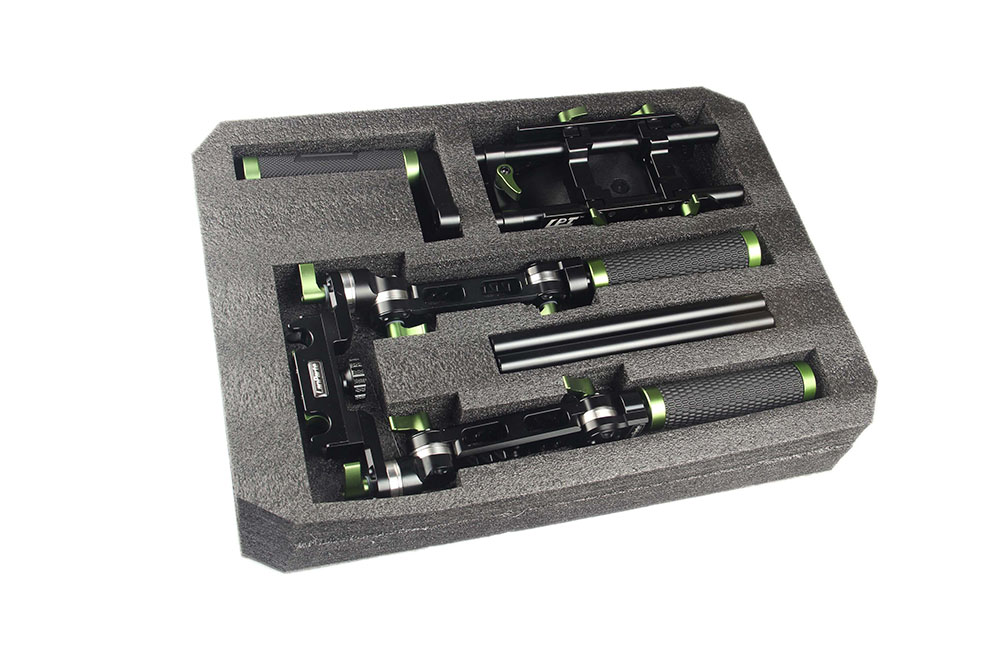

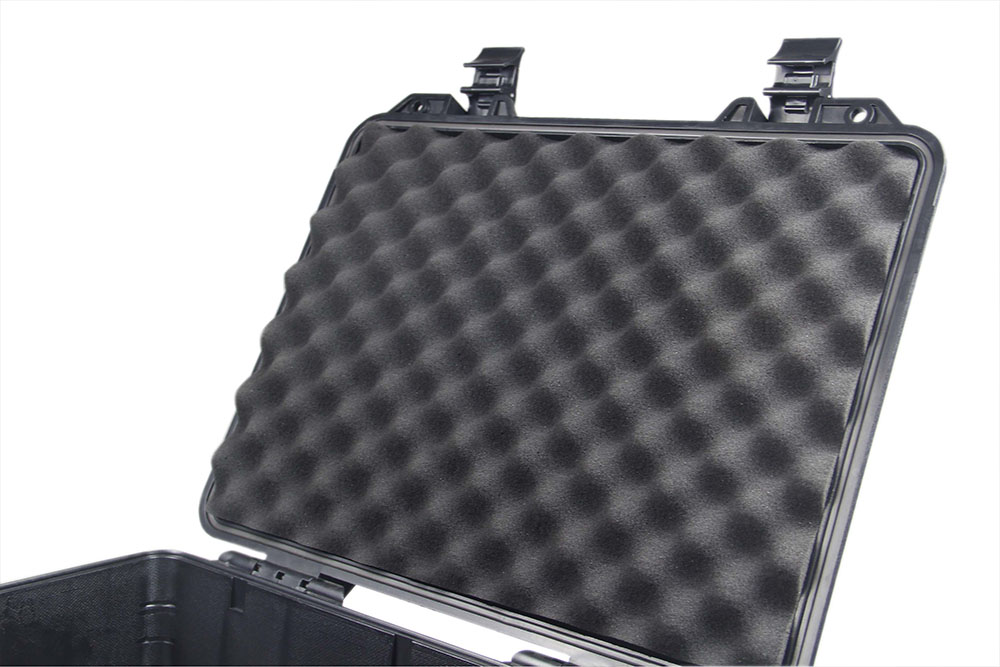

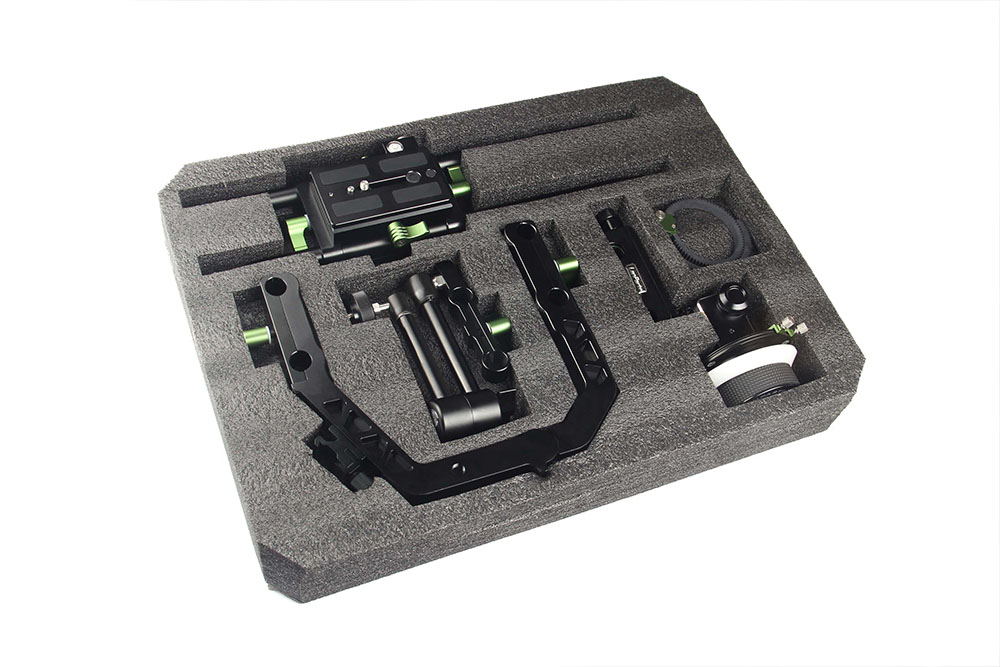

The watertight Lanparte ABS Protection Suitcase features a hard ABS exterior and two custom-cut, stacking foam insert layers designed to hold and protect key components of Lanparte DSLR camera rig kits. A top handle is provided for easy carrying of the case.

Top foam layer fits:

  • Bridgeplate (BP-02)
  • Follow Focus (FF-02)
  • Adjustable Gear Ring (FFGR-02)
  • C-Arm Support (CA-01)
  • Magic Arm (MA-01)

Bottom foam layer fits:

  • Universal Grip (UG-02)
  • Top Handle (TH-01)
  • Shoulder Support Pad (SS-01)

Specification

󠀡󠀡

LanParte Bridge Plate Specs

Camera Screw(s) 1/4″-20 and 3/8″-16
Mounting Interface V-lock
1/4″-20 and 3/8″-16 threaded holes
Rod Length 11.8″ / 300 mm
Height Adjustment Range 1.6″ / 40 mm
Dimensions (WxHxD) Not specified by manufacturer
Weight 1.6 lb / 0.73 kg (including rods)
Packaging Info
Package Weight 2.15 lb
Box Dimensions (LxWxH) 15.9 x 6.4 x 3.7″

LanParte C-Arm Specs

Accessory Mount Threads 1/4″, 3/8″
Dimensions 7.2 x 9.3 x 0.8″ (18.3 x 23.7 x 2.0 cm)
Weight 19 oz (540 g)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 9.9 x 8 x 1.9″

LanParte Top Handle For 15mm Rods Specs

15mm Rod Length 2 x 7.87″ (20 cm)
Dimensions (LxWxH) 5.57 x 3.11 x 3.78″ (141.5 x 79.0 x 96.05 mm) (excluding rods)
Weight 11.5 oz (325 g) (including rods)
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 8.5 x 4.2 x 3.2″

LanParte Universal Grip V2 For 15mm Rods Specs

Accessory Mounting Threads 2 x 3/8″-16 (one on each arm)
1 x 1/4″-20 (one on each arm)
Dimensions (WxHxD) 8.9 x 13.5 x 1.2″ / 22.6 x 34.3 x 3.0 cm
Weight 2.46 lb / 1.12 kg
Packaging Info
Package Weight 2.815 lb
Box Dimensions (LxWxH) 15.3 x 8.65 x 2.5″

LanParte Follow Focus V2 With Hard Stops For 15mm Rods Specs

Included Drive Gear 0.8 MOD
Rod Standard 15 mm LWS / 60 mm Spacing
Number of Sides Single-Sided
Built-In Hardstops 2, Fixed
Marking Disk Yes
Switchable Handwheel Speed No
Dimensions 7.44 x 4.31 x 3.16″ / 188.97 x 109.6 x 80.25 mm
Weight 1.12 lb / 0.51 g
Packaging Info
Package Weight 1.535 lb
Box Dimensions (LxWxH) 9.55 x 5.75 x 4.15″

LanParte Magic Arm Specs

Material Rugged, anodized aluminum alloy
Threads 1/4″-20
3/8″-16
Dimensions Height: 2.5″ (63 mm)
Length Unfolded: 11″ (280 mm)
Length Folded: 6.1″ (155 mm)
Weight 11.6 oz (330 g)
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 6.8 x 3.6 x 1.5″

LanParte Shoulder Support For DSLR Camera Rig Specs

Material Aluminum alloy, rubber pad
Dimensions 7.9 x 4.3 x 4.5″ (20.0 x 10.9 x 11.3 cm)
Weight 21.9 oz (620.0 g)
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 8.6 x 4.7 x 3.5″

LanParte Offset Clamp Specs

Vertical Offset 1.77″ (45 mm)
Horizontal Offset 4.13″ (105 mm)
Dimensions 7.2 x 0.6 x 3.1″ (18.3 x 1.5 x 7.8 cm)
Weight 3.5 oz (100 g)
Packaging Info
Package Weight 0.22 lb
Box Dimensions (LxWxH) 8.55 x 5.3 x 0.85″

LanParte ABS Protection Suitcase For DSLR Camera Rig Kit Specs

Case Type Hard Case
Exterior Dimensions (L x W x H) 18.62 x 15.20 x 8.11″ / 47.3 x 38.6 x 20.6 cm
Packaging Info
Package Weight 10.75 lb
Box Dimensions (LxWxH) 18.9 x 15.7 x 8.8″

What's Included

󠀡󠀡1.Univerdal Grip,V2 (UG-02)
2.Follow Focus,V2 (FF-02)
3.Gear ring,V2 (FFGR-02)
4.Bridge plate (BP-02B)
5.2*300mm Aluminum Rods (AR-300)
6.C-Arm,V1 (CA-01)
7.Top Handle (TH-01)
8.Magic-Arm,V1 (MA-01)
9.Shoulder Support (SS-01)
10.Height Raiser Clamp (HRC-01)
11.ABS Protection Suitcase (ASC-02)
