  • Shoulder mounted
  • Extension arm for original hand grip
  • Top cheese plate fit for FS5 camera
  • Monitor extension arm for extend and reposition monitor
  • One-in-all power supply

$888.00

Description

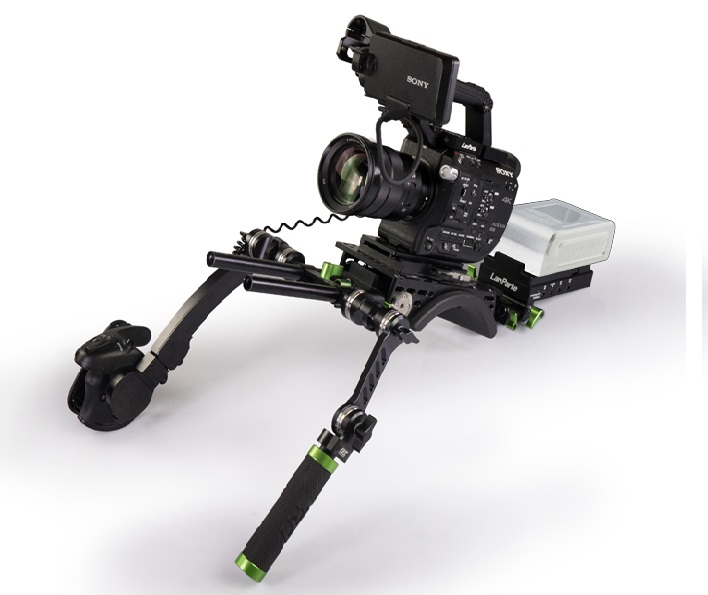

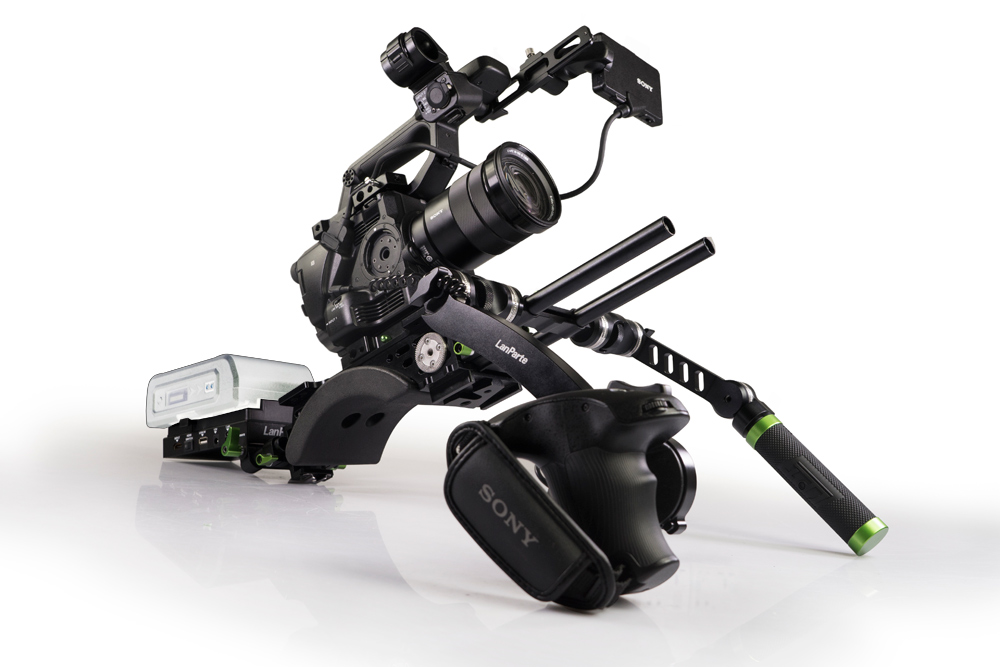

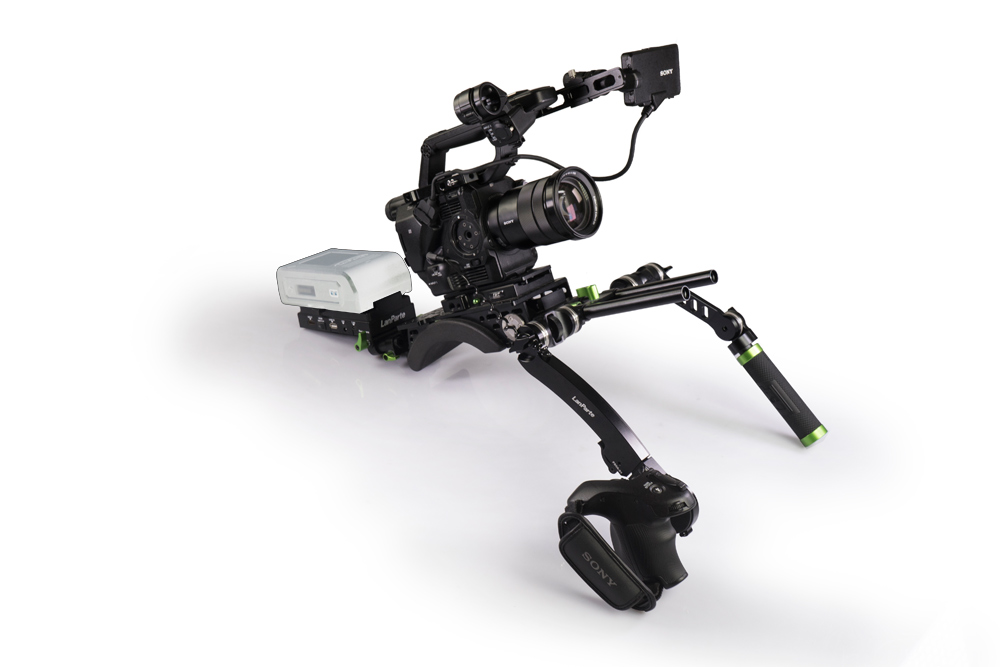

The Lanparte Basic Handle Kit includes the FS5 Extension Arm, ARRI Rosette Handgrip, Double Arri Rosette Lock Threaded Hole with Double Rod Clamp, Top Cheese Plate for FS5, Magic-Arm, FS5 Monitor Extension Arm, V-Mount Shoulder Support (V2), V-Mount Battery Pinch, and Sony FS5 Camera DC Power Cable.

The FS5 Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip’s controls.

Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp allows you to attach and adjust rosette-mount handgrips on your shoulder rig.

Use the Sony PXW-FS5 Utility Top Plate to add multiple accessory mounting–points to your camera.

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Magic Arm and gain the flexibility to fit it in nearly any orientation you require.

The EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort.

Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder.

Power your camera rig with the VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management.

Use the DC Power Cable to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately).

LanParte Extension Arm for the Sony PXW-FS5

This LanParte Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1′ of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2″ distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip’s controls.

Designed for the Sony PXW-FS5
Fully adjustable 2″ Arri-style rosette extension included
Built-in 3-pin LANC cable maintains all handgrip controls
Adds approximately 1′ to the handgrip length, and 2″ to the baseplate width
Aluminum construction

LanParte Dual Rod Clamp with Rosettes

Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel.

LanParte Utility Top Plate for Sony PXW-FS5

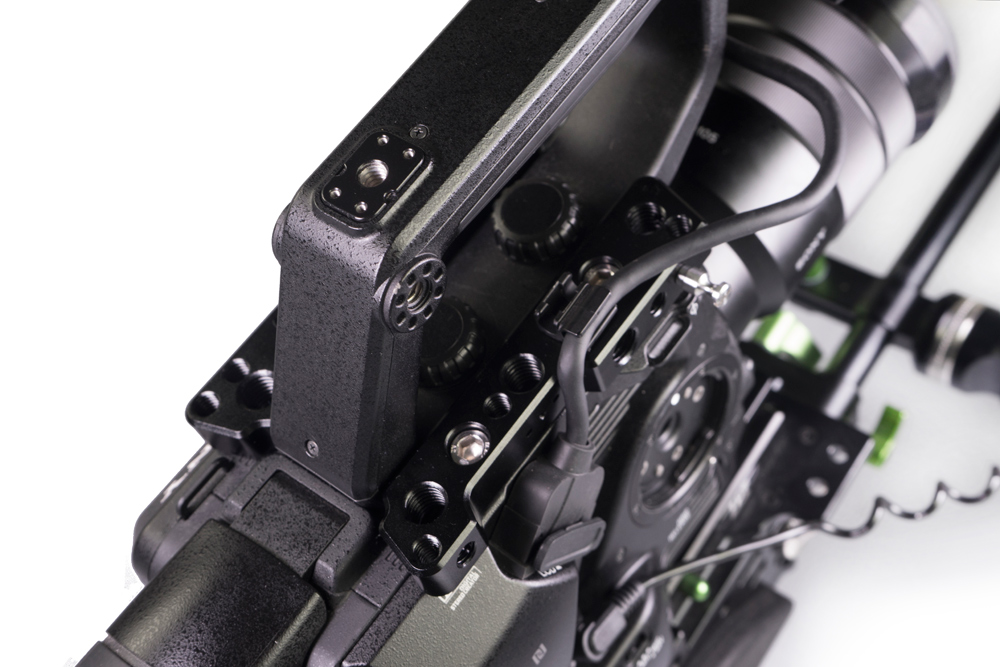

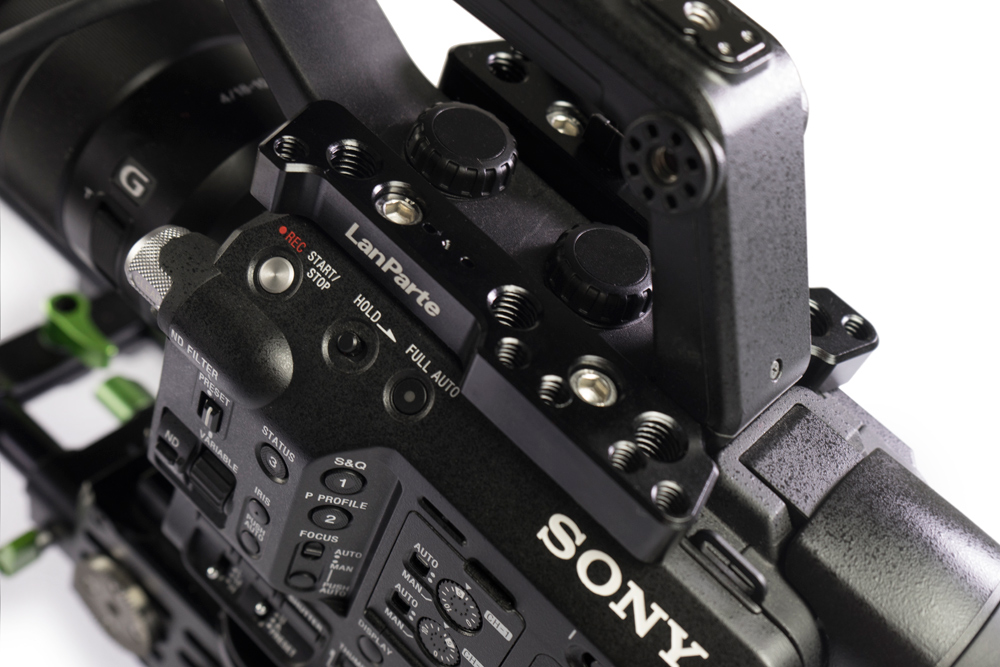

Use the LanParte Utility Top Plate for the Sony PXW-FS5 to add multiple accessory mounting points to your camera. This cheese plate is composed of two pieces that mount to the top of the camera, fitting around the base of the original PXW-FS5 top handle. The plate features both 1/4″-20 and 3/8″-16 threaded holes. When installing the plate, the camera’s EVF cable should be removed from its original location and relocated to the side of the cheese plate.

LanParte Magic Arm

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.

Angle-adjustable
CNC machined aluminum construction

LanParte EVF Extension Arm for Sony PXW-FS5

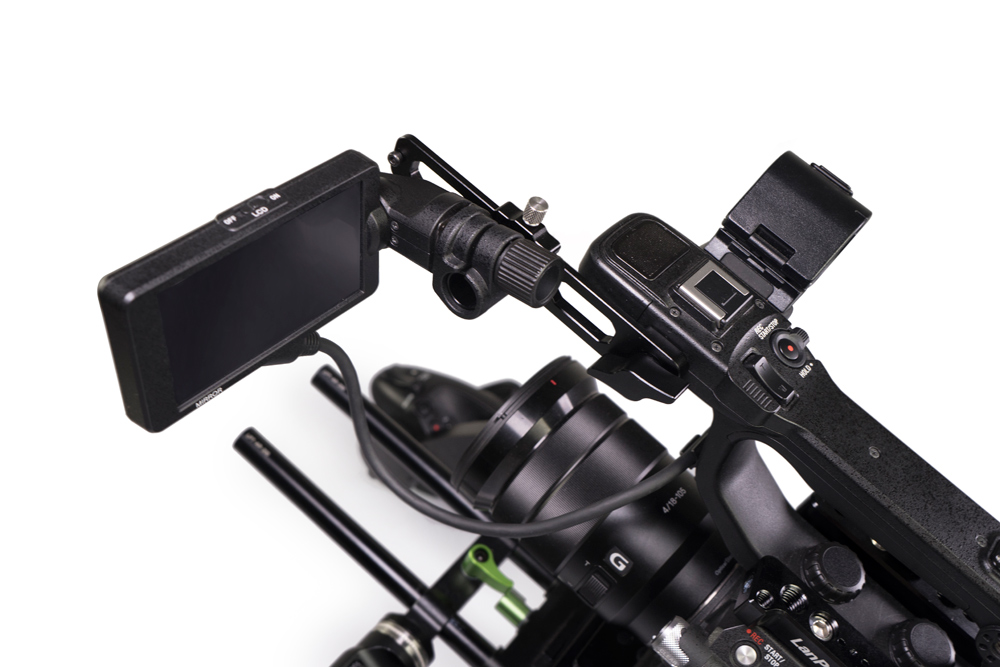

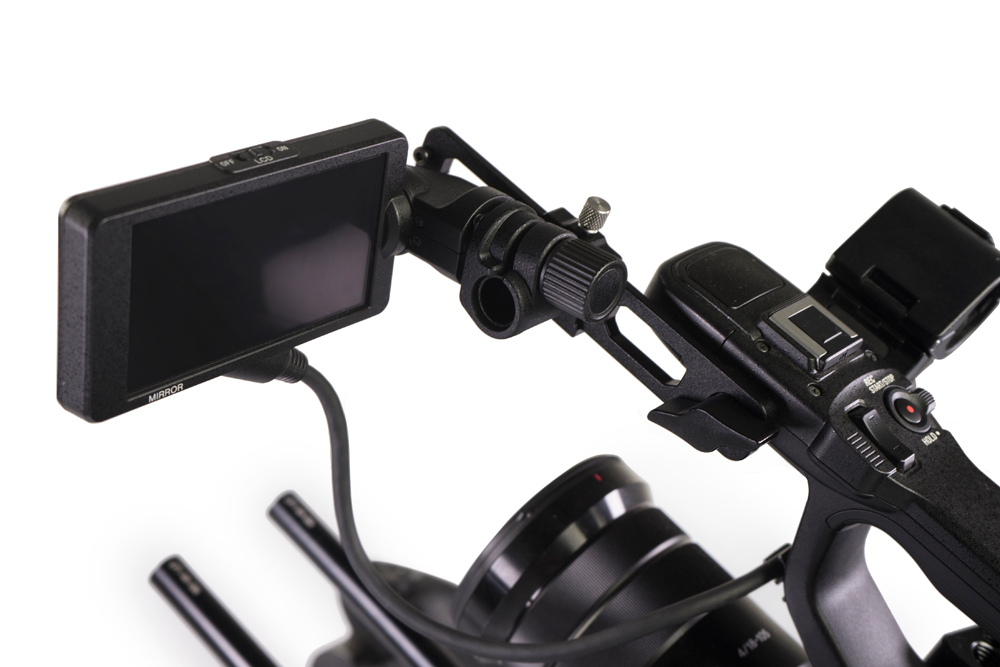

This LanParte EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort. No tools are necessary; the arm attaches to the camera’s original EVF mount via a thumbscrew. Its rotatable design allows it to be positioned at multiple angles, and it slides to extend the EVF up to 4″ from the mount. This lightweight arm is constructed from black-finished aluminum.

Rotatable design increases viewing-angle options
Extends the EVF up to 4″ from its original mounting position
Thumbscrew enables quick, tool-free installation
Installs on the camera’s original EVF mount
Made from lightweight black-finished aluminum

LanParte V-Mount Shoulder Support V2

Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.

V-Mount lock on bottom of shoulder support
Quick release system with safety trigger
Mountable on VCT-14 via the tail lock
Adjustable rod height
15mm Rod connectors
Ergonomic shoulder pad
Spirit level
CNC machined
Hollow design, lightweight at 3 lb

LanParte VBP-01 V-Mount Battery Pinch

Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.

Battery charging input
V-Mount
Built-in HDMI splitter
15mm rod connectors
USB charging port for mobile devices
Can be mounted to the back of the rig as counterweight

LanParte DC Power Cable for Sony FS5 Cinema Camera

Use this DC Power Cable from LanParte to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately). The cable can also be used with any device accepting 12V power through a 2.1 x 5.5mm port.

Allows the use of longer-running V-Mount batteries with the Sony PXW-FS5
Works with the LanParte V-Mount battery adapter
Compatible with any 12 VDC device with a 2.1 x 5.5mm port

Specification

󠀡󠀡

What's Included

󠀡󠀡1. FS5 extension arm (FS5A-01)
2. Arri Rosette Handgrip (UG-03-H)
3. Double Arri Rosetter Lock Threaded hole with Double Rod Clamp (ARL-01T-D2)
4. Top Choose Plate for FS5 (TCP-02)
5. MagiC-Arm (MA-01)
6. FS5 monitor extension arm ( MEA-01)
7. V-Mount Shoulder Support, V2 (VMS-01)
8. V-Mount Battery Pinch (VBP-01)
9. Sony FS5 camera DC power cable (DC-50-10)
10. 2*250mm Aluminum rods (AR-250)
