  • Fits both Sony a7 and Panasonic GH4 cameras
  • Specialized design prevents the blocking of buttons
  • Ergonomic design

$633.00

Description

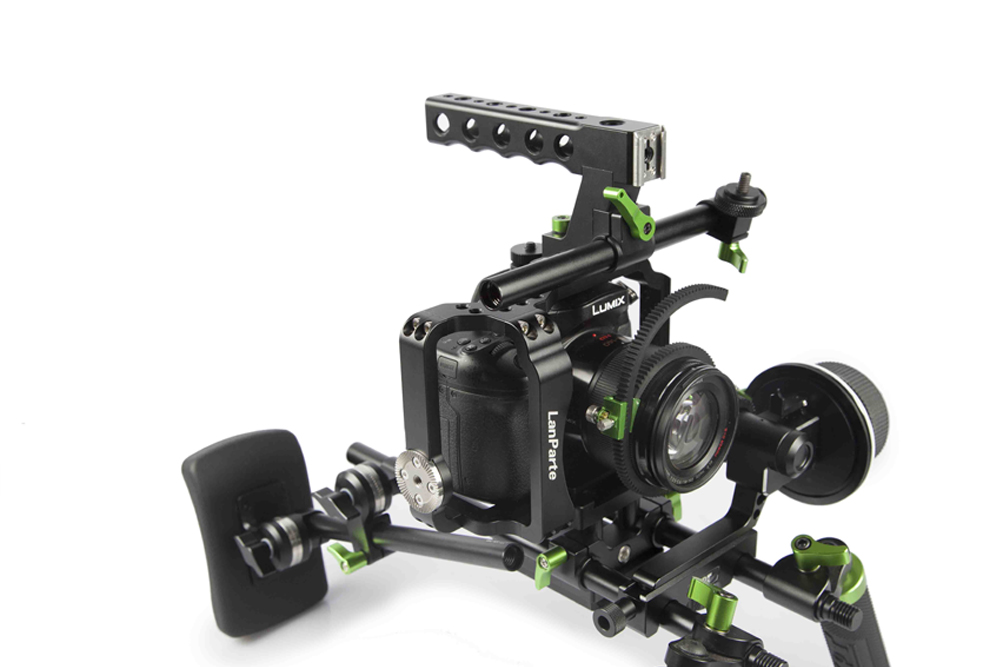

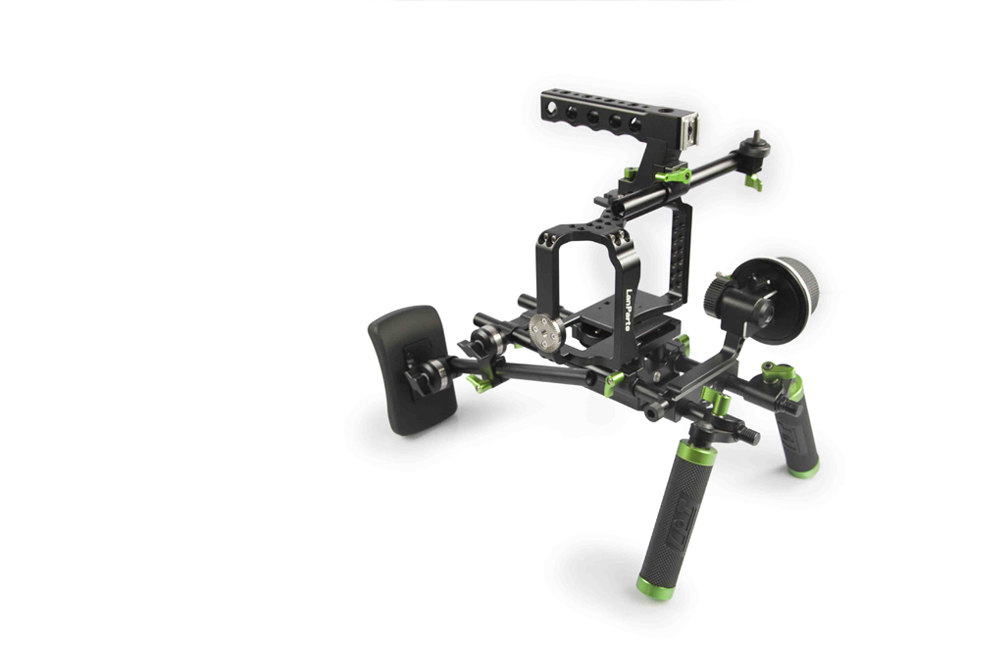

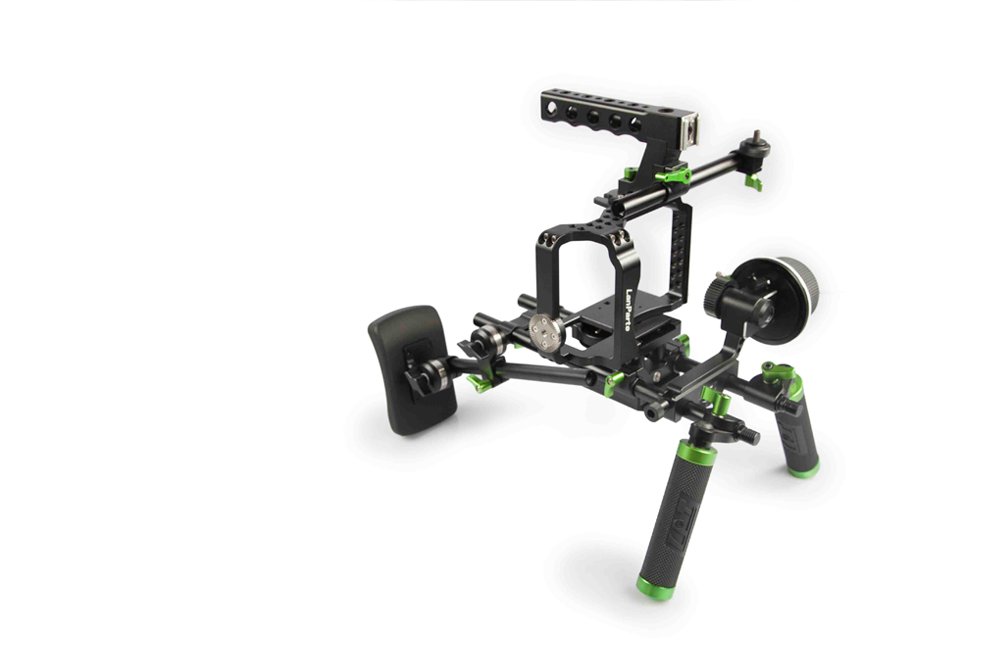

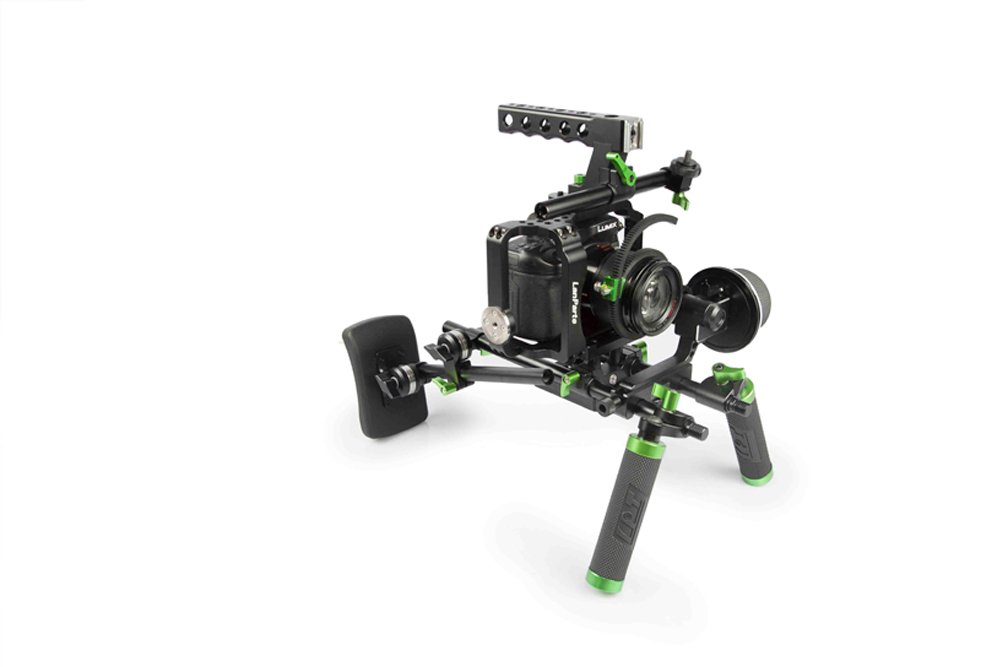

The Lanparte Mirrorless Camera Basic Kit includes the MCK-01 Mirrorless Camera Basic Kit, BH-01 Handle, FF-02 Follow Focus, FFGR-02 Follow Focus Gear Ring, and CP-01 Chest Pad.

The Mirrorless Camera Basic Cage is designed for the Panasonic LUMIX GH4 and Sony a7 cameras. It comes with a baseplate and an EVF mount. The LWS baseplate supports a pair of 11.8″ rods. The NATO quick release top handle attaches to the top of the cage via an included 2.4″ NATO rail.

This Basic Handle pair from LanParte enables dual handgrip support with 15mm rod support rigs.

The Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings.

The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1″.

Stabilize your rig with the Chest Pad. Using the built-in 15mm rod clamp, the chest pad secures to your rig or baseplate. When braced against your chest, the pad offers a stable point of contact to counteract shakiness.

LanParte Mirrorless Camera Basic Cage

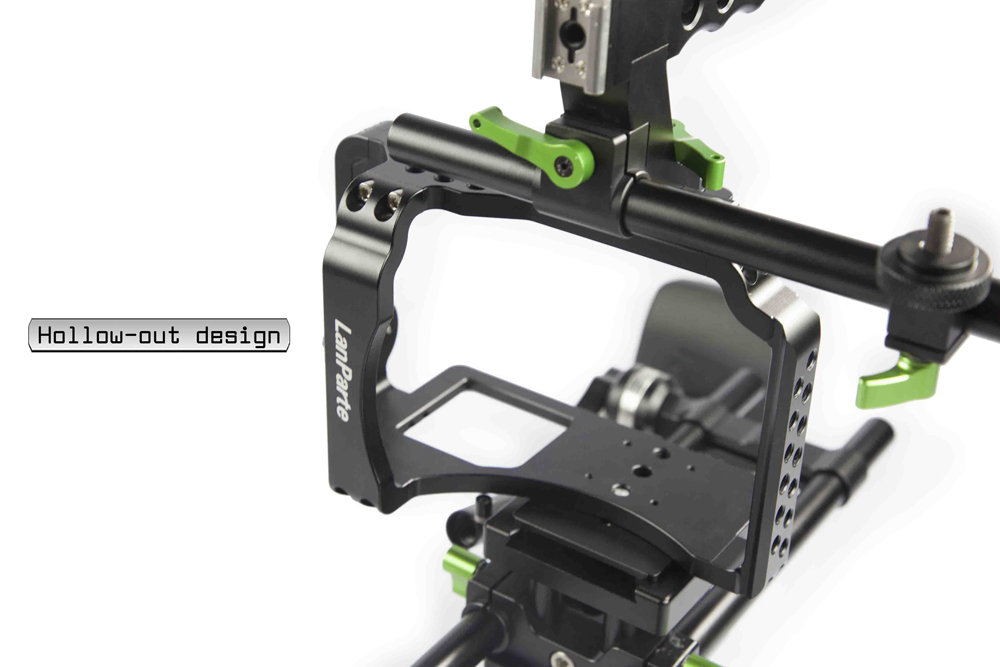

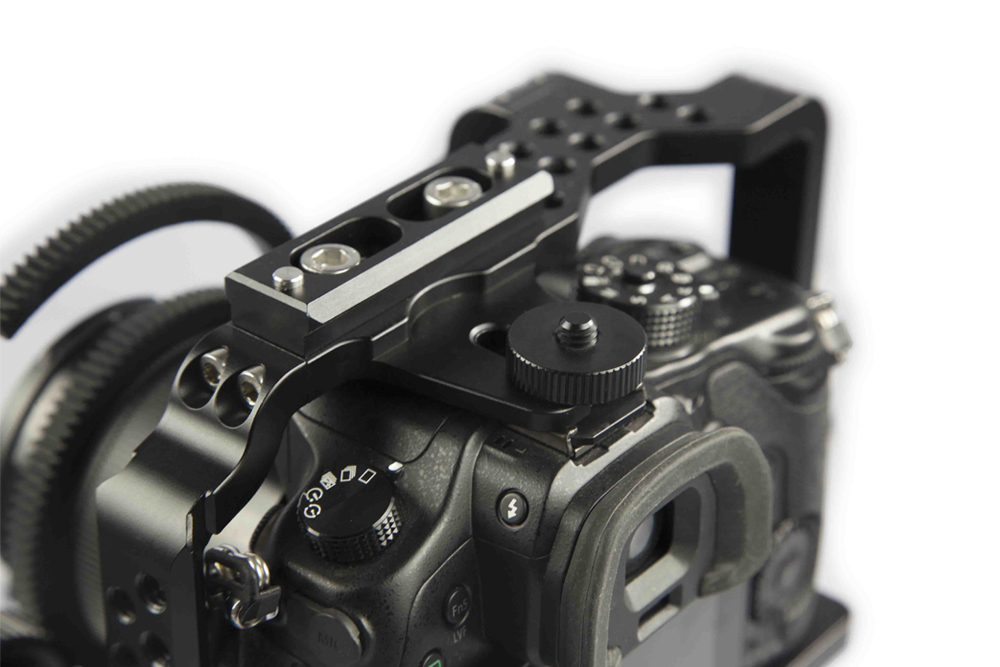

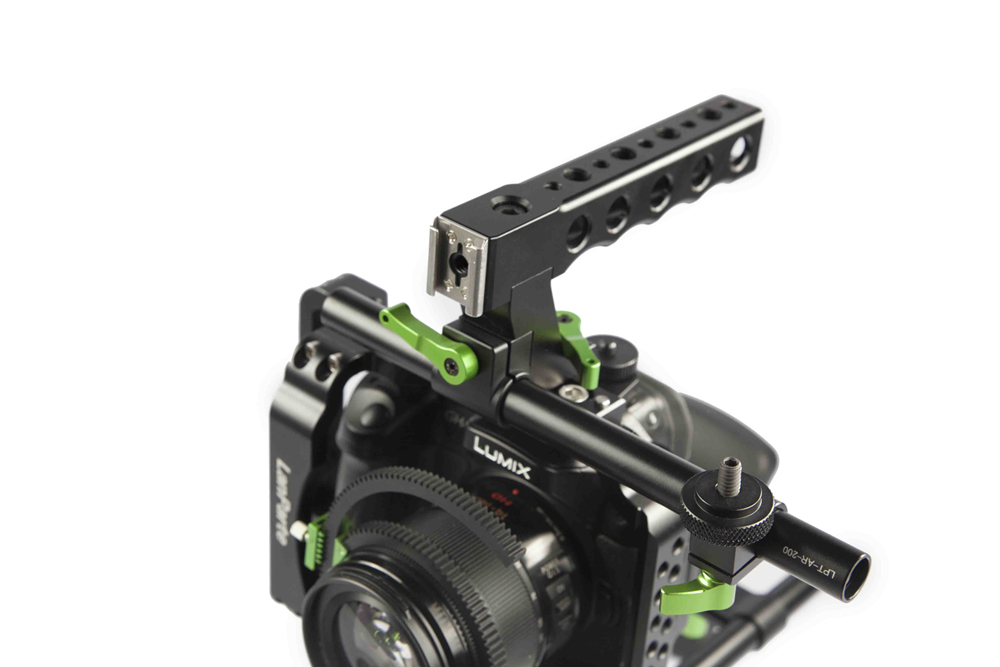

The LanParte Mirrorless Camera Basic Cage is designed for the Panasonic Lumix GH4 and Sony a7 cameras. It comes with a baseplate and an EVF mount. The LWS baseplate supports a pair of 11.8″ rods. The NATO quick release top handle attaches to the top of the cage via an included 2.4″ NATO rail. The top handle slides on the NATO rail and features a variety of accessory mounting options, including an integrated 15mm rod clamp for attaching an optional monitor or an EVF support bracket, such as the UVF Mount, sold separately. An integrated shoe mount is also provided, and there are 1/4″-20 and 3/8″-16 threaded holes on the grip area.

Fits both Sony a7 and Panasonic GH4 cameras
Specialized design prevents the blocking of buttons
Ergonomic design

LanParte Basic Handle for 15mm Rod (Pair)

This Basic Handle pair from LanParte enables dual handgrip support with 15mm rod support rigs. Each handle is constructed from CNC machined aluminum and features a 15mm rod clamp and non-slip silica-gel grip.

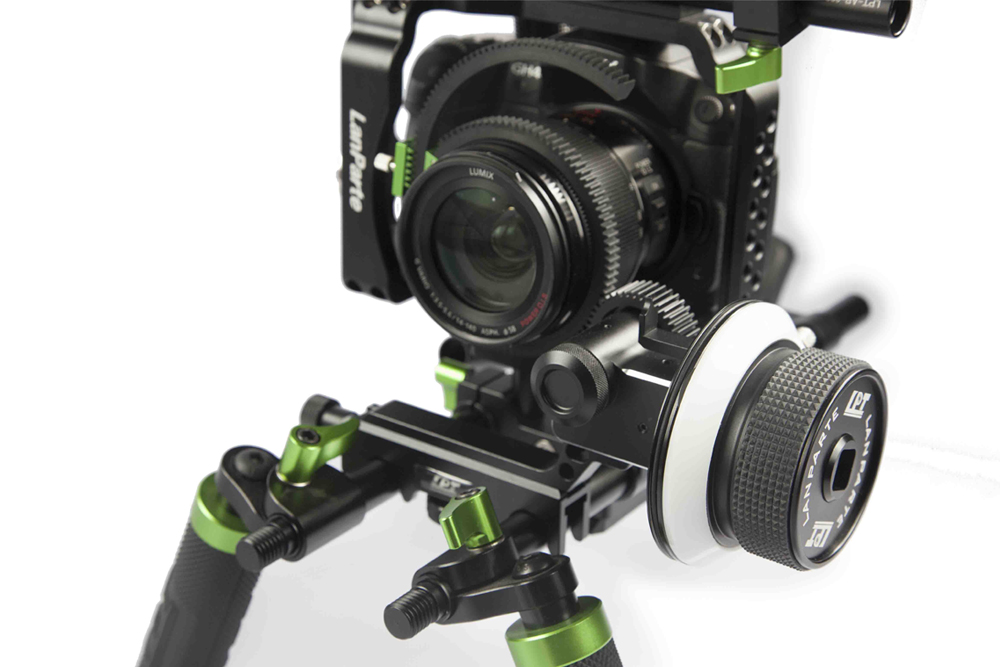

LanParte Follow Focus V2 with Hard Stops for 15mm Rods

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

Key Features

  • Clamps onto 15mm LWS rods
  • Integrated A/B hard stops
  • Copper gear and precision bearing
  • Standard 0.8 pitch drive gear included
  • Drive gear can be flipped to either side of gearbox
  • Sliding dovetail design for adjusting to different sized lenses
  • Removable magnetic marking disc
  • ARRI standard 12mm accessory port
  • CNC machined aluminum components
  • Adjustable lens gear ring included

LanParte Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus

The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1″. The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens.

LanParte Chest Pad

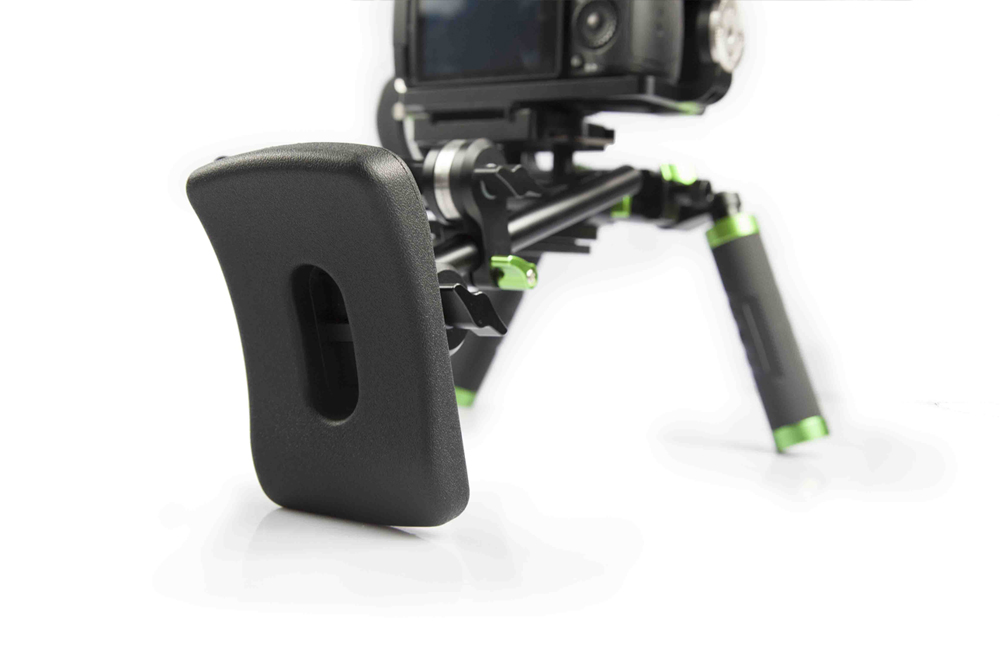

Stabilize your rig with this Chest Pad from Lanparte. Using the built-in 15mm rod clamp, the chest pad secures to your rig or baseplate, and when the pad is braced against your chest, it offers a stable point of contact to counteract shakiness. The chest pad articulates on two ARRI rosettes for comfortable positioning.

Angle adjustable via ARRI rosette
Ergonomic design
Lightweight at 0.9 lb



Specification

󠀡󠀡

LanParte Mirrorless Camera Basic Cage Specs

General
Threaded Holes 1/4″-20 and 3/8″-16
Dimensions 14 x 10 x 4″ (35.6 x 25.4 x 10.2 cm)
Weight 7 lb (3.2 kg)
Packaging Info
Package Weight 3.29 lb
Box Dimensions (LxWxH) 13.25 x 10.25 x 3.8″

LanParte Basic Handle For 15mm Rod (Pair) Specs

Dimensions 7.09 x 2.76 x 1.38″ (18.0 x 7.0 x 3.5 cm)
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 7.4 x 3.6 x 1.5″

LanParte Follow Focus V2 With Hard Stops For 15mm Rods Specs

Included Drive Gear 0.8 MOD
Rod Standard 15 mm LWS / 60 mm Spacing
Number of Sides Single-Sided
Built-In Hardstops 2, Fixed
Marking Disk Yes
Switchable Handwheel Speed No
Dimensions 7.44 x 4.31 x 3.16″ / 188.97 x 109.6 x 80.25 mm
Weight 1.12 lb / 0.51 g
Packaging Info
Package Weight 1.535 lb
Box Dimensions (LxWxH) 9.55 x 5.75 x 4.15″

LanParte Gear Ring With Pin-Lock Tightening Mechanism For Follow Focus Specs

Gear MOD 0.8 MOD
Supported Lens Diameter 60 to 105 mm
Material Rubber
Weight 0.7 oz / 20 g
Packaging Info
Package Weight 0.05 lb
Box Dimensions (LxWxH) 3 x 2.9 x 0.55″

LanParte Chest Pad Specs

Dimensions 7.9 x 3.9 x 2.0″ (20 x 10 x 5 cm)
Weight 0.9 lb (0.4 kg)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 11.7 x 4.6 x 3.5″

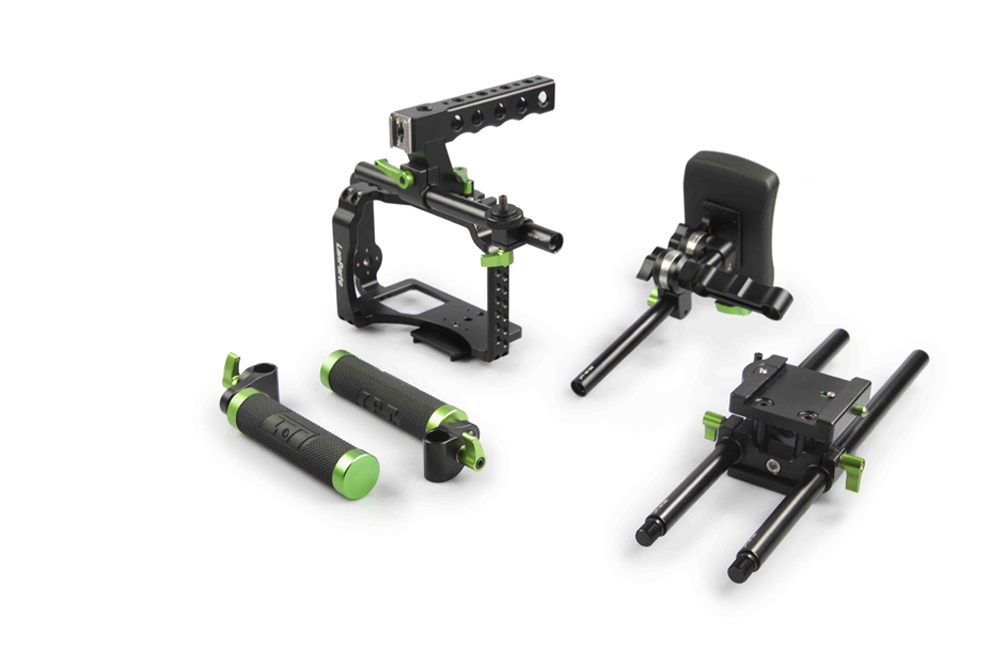

What's Included

󠀡󠀡1.Mirrorless Camera Basic Cgae (MCK-01)
2.Top Handle (TH-01)
3.LWS base plate
4.Single Rod Clamp (SRC-01)
5.1*200mm Aluminum rods (AR-200)
6.Basic Handle (BH-01)
7.Follow Focus (FF-02)
8.Follow Focus Gear Ring (FFGR-02)
9.Chest Pad (CP-01)
